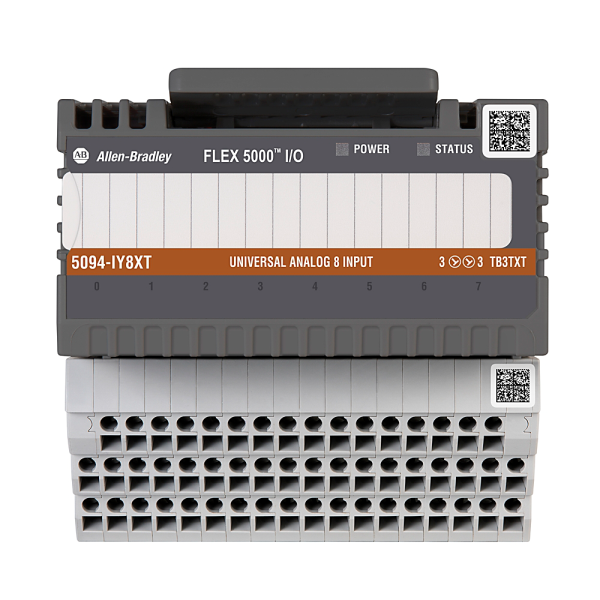

5094XT Universal Analog 8 Input
SKU: 5094-IY8XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Allen-Bradley's 5094-IY8XT is an XT-rated universal analogue input module from their FLEX 5000™ I/O family.
It has 8 customizable input channels that accept a variety of analogue signals such as voltage, current, RTD, and thermocouple.
It is perfect for applications that require flexibility, precision, and resilience under extreme temperatures.
8 Universal Analog Inputs. Each channel supports a variety of signal types:
Voltage (e.g., ±10V or 0-10V).
Current (for example, 4–20 mA).
thermocouples (TC).
Resistance Temperature Detectors (RTDs).
Individually Configurable Channels Mix and combine input types across channels to meet your needs.
High resolution (16 bits) ensures reliable signal conversion and data integrity.
XT-Rated for extreme temperatures (-40 °C to +70 °C) and suitable for hard settings.
EtherNet/IP™ Communication Easily integrate with Logix 5000™ controllers and Studio 5000® software.
Compact and Modular Design Reduces panel area and facilitates installation and maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: Universal analogue input.
Platform: FLEX 5000™ I/O.
Channels: 8 individually configurable analogue inputs.
Supported Signal Types:
Voltage (±10V, 0–10V).
Current (0–20 mA, 4–20 mA).
Thermocouple (TC).
RTD (Resistance Temperature Detector).
Resolution: 16-bit high-precision.
Input Configuration: Single-ended and differential.
Isolation: Channel-to-channel and channel-to-backplane.
Temperature Range: –40 °C to +70 °C (XT-rated for extreme environments).
Humidity Tolerance: 5% to 95% non-condensing.
Power Consumption: Approx. 4.5 W.
Communication: EtherNet/IP™.
Software Integration: Studio 5000 Logix Designer®.
Compatible Controllers: Logix 5000™ family.
Mounting: DIN rail via FLEX 5000 base.
Shielding Requirement: Use with 5094-STB shield bar.
Enclosure Rating: IP20 (when housed properly).
Certifications: CE, UL, RoHS, CSA (check module label for specifics).
Lifecycle Status: Active.
