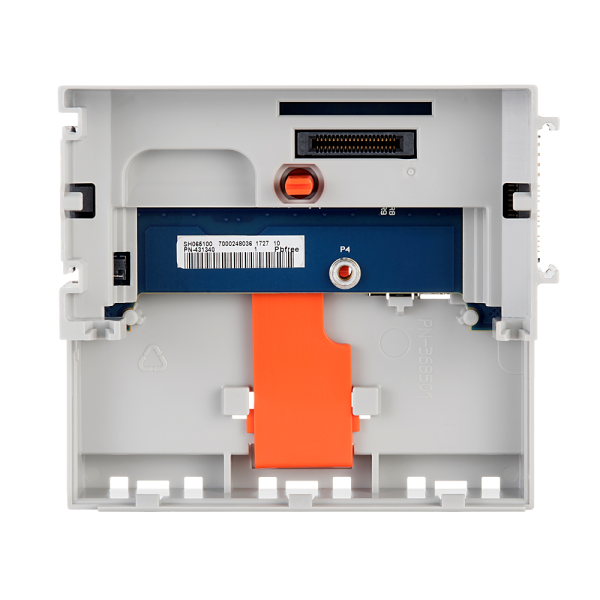

5094 Mounting Base
SKU: 5094-MB
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-MB is a modular mounting base compatible with Allen-Bradley's FLEX 5000™ I/O system.
It acts as the physical and electrical link between FLEX 5000 I/O modules and the DIN rail, allowing for secure installation and dependable backplane connection.
This base device enables hot-swapping of I/O modules, simplifies wiring with detachable terminal blocks, and offers shielding when connected with the 5094-STB shield bar.
It's critical for developing scalable, high-performance industrial control systems.
Provides mechanical support for FLEX 5000 modules.
Allows backplane connectivity for data and power transfer.
Supports DIN rail mounting for easier installation.
Compatible with replaceable terminal blocks, allowing for flexible wiring.
Uses shield bars to ensure appropriate grounding of analog signals.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 5094-MB.
Product Type: Mounting base for FLEX 5000™ I/O modules.
Voltage Rating: 15 V DC.
Backplane Current: 100 mA.
Weight: Approximately 0.16 lbs (72 g).
Cooling Method: Convection.
Mounting Style: DIN rail.
Assembly Components:
Mounting base.
Removable terminal block (RTB) — sold separately.
Shielding Support: Compatible with 5094-STB shield bar for analogue and high-speed signal grounding.
Environmental Rating: IP20 (when installed in enclosure).
System Compatibility: FLEX 5000™ I/O modules, including analogue, digital, and specialty types.
Certifications: UL, CE, RoHS (check module label for region-specific approvals).
