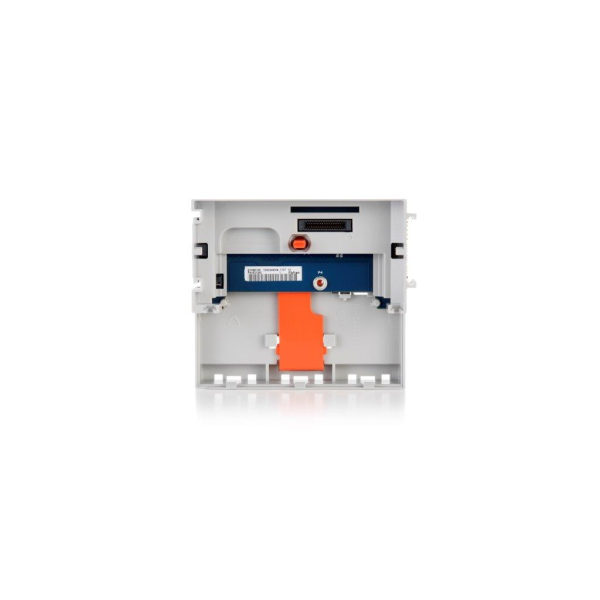

5094 Mounting Base Xt
SKU: 5094-MBXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-MBXT is a tough mounting base for the Allen-Bradley FLEX 5000™ I/O system, specifically developed to accommodate XT (Extended Temperature) applications.
It acts as the primary interface between FLEX 5000 I/O modules and the backplane, allowing for reliable electrical and mechanical connections.
Key features:
Supports modular installation of up to eight FLEX 5000 I/O modules.
Compatible with digital, analogue, HART analogue, and specialized I/O modules.
Designed for DIN rail attachment with multiple wiring choices.
Operating temperature range: -40°C to +70°C.
Offers rack based I/O functionality in a small footprint.
Works with shield bars to improve signal grounding.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 5094-MBXT.
Product Type: Mounting base for FLEX 5000™ I/O modules.
System Compatibility: FLEX 5000™ I/O platform.
Voltage Rating: 15 V DC.
Backplane Current: 100 ma.
Mounting Style: DIN rail.
Cooling Method: Convection.
Environmental Rating: XT (Extended Temperature).
Operating Temperature Range: –40 °C to +70 °C.
Enclosure Rating: IP20 (when installed in a protective enclosure).
Shielding Support: Compatible with 5094-STB shield bar for analogue and high-speed signal grounding.
Certifications: UL, CE, RoHS (check product label for batch-specific approvals).
Lifecycle Status: Active.
Use Case: Required base for installing FLEX 5000 XT-rated I/O modules in harsh or outdoor environments.
