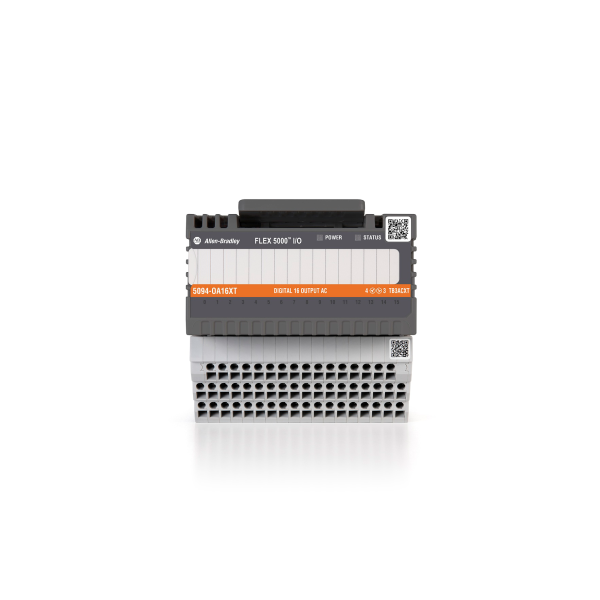

5094XT Digital 16 Output 120/240 VAC
SKU: 5094-OA16XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-OA16XT is a high-density digital output module from Allen-Bradley's FLEX 5000 XT series that controls 16 independent output channels at 120/240 VAC.
Designed for high-temperature situations, it performs consistently in severe industrial settings such as outdoor installations, high-vibration zones, and process-heavy facilities.
This module is perfect for switching high-voltage loads like relays, contactors, and actuators, and connects smoothly with Logix 5000™ controllers via EtherNet/IP™.
It supports hot-swapping, modular expansion, and diagnostic feedback, making it a strong candidate for distributed control systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 5094-OA16XT.
Product Type: Digital Output Module.
Platform: FLEX 5000™ XT Series.
Output Channels: 16.
Output Voltage Range: 120/240 VAC.
Frequency: 50/60 Hz.
Total Output Current: Up to 10 A.
Operating Temperature: –40 °C to +70 °C (XT-rated for extended environments).
Mounting Type: DIN rail via FLEX 5000 base.
Communication Protocol: EtherNet/IP™.
Integration Software: Studio 5000 Logix Designer®.
Controller Compatibility: Logix 5000™ family (e.g., ControlLogix® 5580, CompactLogix™ 5380).
Certifications: UL, CE, RoHS (check module label for region-specific approvals).
Lifecycle Status: Active.
Use Case: High voltage switching for industrial actuators, relays, and contactors in harsh environments.
