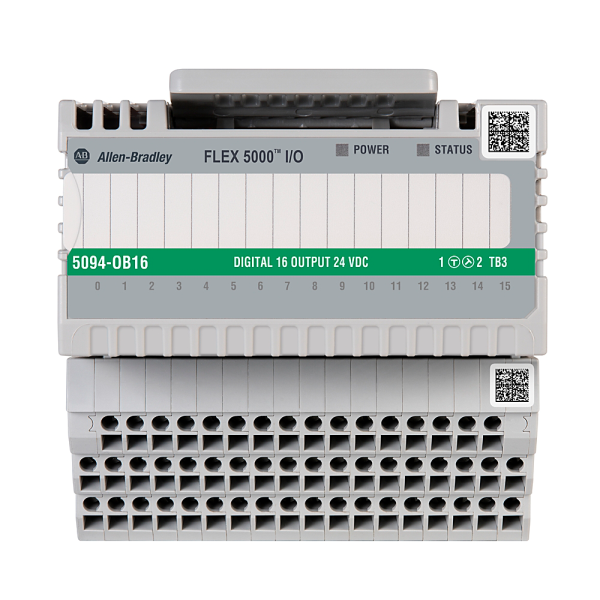

5094 Digital 16 Output
SKU: 5094-OB16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-OB16 is a 16-point digital output module for the FLEX 5000™ I/O platform.
It provides dependable 24V DC output control across 16 channels, making it perfect for fast switching of devices like solenoids, relays, and indicators in industrial automation systems.
This module enables RIUP (Removal and Insertion Under Power), provides diagnostics, and effortlessly connects with Logix 5000™ controllers via EtherNet/IP™.
There are 16 digital outputs being sourced.
It operates at 18-32 V DC (nominal 24 V DC).
Switch quickly with a delay of less than 100 µs.
Supports modular installation and hot switching.
FLEX 5000 terminal bases and shield bars are fully compatible.
Suitable for distributed control systems in the manufacturing, utility, and process industries.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalog Number: 5094-OB16.
Output Channels: 16 sourcing outputs.
Operating Voltage Range: 18–32 V DC.
Nominal Voltage: 24 V DC.
Max Output Current per Channel: 0.5 A.
Max Surge Current: 1 A for 10 ms (repeatable every 2 s).
Backplane Voltage: 15 V DC.
Backplane Current: 100 mA.
Off-State Voltage: Max 5 V DC.
Off-State Leakage Current: Max 0.5 mA per point.
On-State Voltage Drop: Max 0.25 V DC.
Minimum Load Current: 1 mA per channel.
Output Delay Time: Max 100 µs (Off to On and On to Off).
Pulse Width: ≥ 200 µs at 0.5 A.
Operating Temperature: –40 °C to +70 °C.
Mounting: DIN rail via FLEX 5000 base.
Communication: EtherNet/IP™.
Integration: Studio 5000 Logix Designer®.
Certifications: UL, CE, RoHS.
Lifecycle Status: Active.
