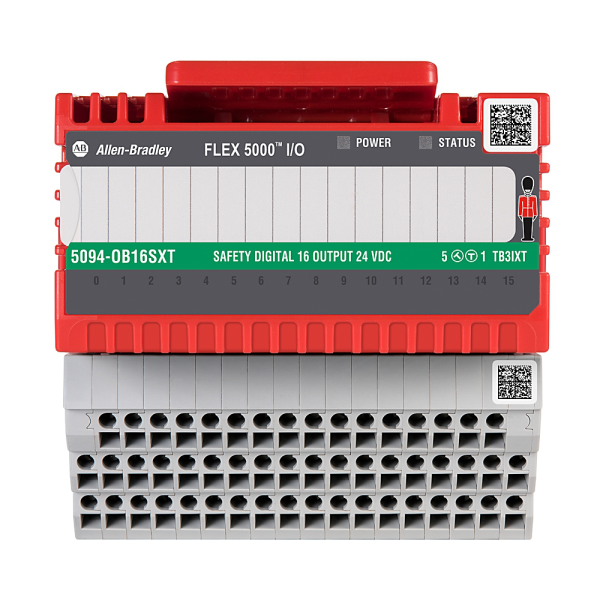

5094XT Safety Digital 16 Output
SKU: 5094-OB16SXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This module has 16 source digital outputs and is designed to fulfil stringent safety requirements, including SIL 3 (IEC 61508), SIL CL 3 (IEC 62061), and PLe, Category 4 (ISO 13849-1).
Because it works with GuardLogix® 5580 and Compact GuardLogix® 5380 safety controllers, it's perfect for applications that need to control actuators, solenoids, and other output devices in a failsafe manner.
The XT designation indicates that it is designed for extended temperature ranges and features conformal coating to resist corrosion, humidity, and extreme weather conditions.
Output type is 16-point digital sourcing.
Voltage range: 18-32 volts DC.
Maximum Current per Channel: 0.5 A.
Total module current: 8 A resistive.
Hot-swappable: Yes (RIUP = Removal and Insertion Under Power).
Communication: EtherNet/IP with a Producer/Consumer model.
Configuration: Studio 5000 Logix Designer®.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Output Type: Digital sourcing.
Number of Outputs: 16 channels.
Voltage Range: 18–32 V DC.
Nominal Voltage: 24 V DC.
On-State Current per Channel:
Minimum: 10 mA.
Maximum: 0.5 A.
Total Module Current: Up to 8 A (resistive load).
On-State Voltage Drop: ≤ 0.5 V @ 0.5 A.
Off-State Leakage Current: ≤ 0.1 mA.
Off-State Voltage: ≤ 5 V DC.
Field Power Supply: Connected via SA+/SA– terminals.
Safety Ratings & Certifications:
Functional Safety Compliance:
SIL 3 (IEC 61508).
SIL CL 3 (IEC 62061).
PLe, Category 4 (ISO 13849-1).
Compatible Safety Controllers:
GuardLogix® 5580.
Compact GuardLogix® 5380.
Safety Configuration: Single or dual-channel output logic.
Certifications: UL, CE, ATEX, IECEx Zone 2/Div 2.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Conformal Coating: XT-rated (ISA S71.04 G3 corrosion resistance).
Physical Characteristics:
Dimensions: Approx. 94 mm (W) × 54 mm (H) × 87 mm (D).
Mounting: DIN rail or FLEX 5000 terminal base.
Hot-Swap Capability: Yes (RIUP — Removal and Insertion Under Power).
LED Indicators: Channel status, module health, and diagnostics.
