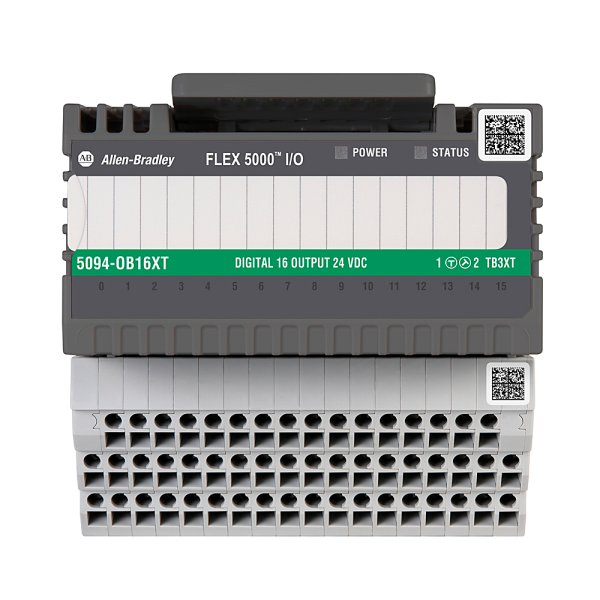

5094XT Digital 16 Output
SKU: 5094-OB16XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-OB16XT is a high-performance digital output module for the FLEX 5000™ XT family, capable of supporting 16 source DC outputs at 24V DC.
It is perfect for industrial applications such as mining, oil and gas, outdoor panels, and high-vibration production lines because it is designed to withstand harsh conditions.
Built for tough settings with a broad temperature tolerance.
Supports real-time fault feedback to minimize downtime.
Compact and robust design for space-constrained situations.
Suitable for remote I/O control in harsh industrial environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalog Number: 5094-OB16XT.
Output Channels: 16 sourcing outputs.
Nominal Voltage: 24V DC.
Voltage Range: 18–32V DC.
Max Output Current:
0.5 A per channel.
4 A max per module.
Isolation Voltage: 250V continuous.
Diagnostics:
Fault detection.
Short-circuit protection.
Output status monitoring.
Environmental Rating: XT (Extreme Temperature).
Operating Temperature: –40 °C to +70 °C.
Humidity: 5% to 95% non-condensing.
Shock/Vibration: Meets high-resilience industrial standards.
Mounting: DIN rail via terminal base.
Compatible Terminal Bases: 5094-TB3SXT, 5094-TB3SDXT.
Communication: EtherNet/IP™.
Integration: Studio 5000 Logix Designer®.
Controller Support: ControlLogix® and CompactLogix® systems.
Certifications: UL, CE, CSA, KC, ATEX Zone 2, IECEx.
Lifecycle Status: Active.
