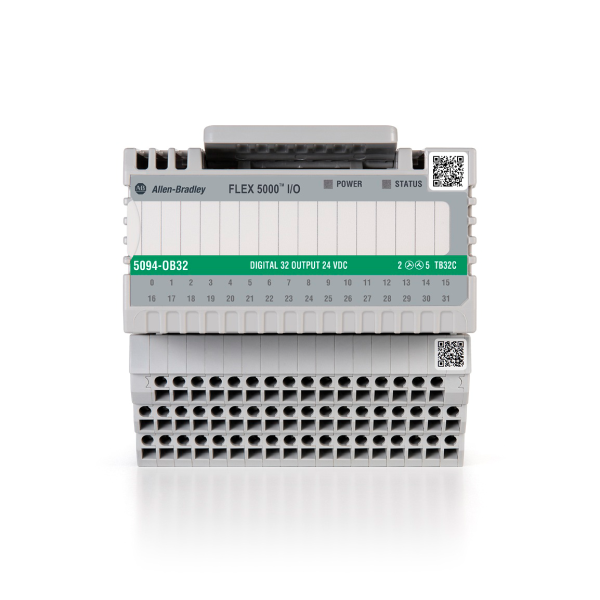

5094 Digital 32 Output 24 VDC
SKU: 5094-OB32
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-OB32 is a high-density digital output module from Rockwell Automation's FLEX 5000™ I/O line.
Designed for industrial automation systems, it has 32 source outputs that operate at 24 VDC, making it excellent for controlling devices like solenoids, relays, and indicator lights.
This module is designed for reliable operation in challenging situations, with features like as hot-swap capability, diagnostic LEDs, and increased environmental resistance.
It supports EtherNet/IP™ connection and interacts smoothly with Studio 5000 Logix Designer® for efficient configuration and diagnostics.
Its tiny form factor and modular design make it ideal for applications that require space-saving, scalable, and fast digital control.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
32 digital sourcing output channels.
Operating voltage range: 18–32 V DC.
Nominal voltage: 24 V DC.
Max current per output: 0.5 A.
Total module current: up to 10 A (resistive load).
On-state voltage drops: ≤ 0.5 V @ 0.5 A.
Off-state leakage current: ≤ 0.1 mA.
Overvoltage protection: up to 36 V DC.
Backplane current draw: ~95 mA.
Heat dissipation: ~13.65 BTU/hr.
Environmental Ratings:
Operating temperature: –40 °C to +70 °C.
Storage temperature: –40 °C to +85 °C.
Humidity: up to 95% non-condensing.
Corrosion resistance: ISA S71.04 G3 compliant.
Certified for hazardous locations: ATEX, IECEx Zone 2.
Physical Characteristics:
Dimensions: 94 mm (W) × 54 mm (H) × 87 mm (D).
Mounting: DIN rail or FLEX 5000 terminal base.
Hot-swap support: Yes (RIUP – Removal and Insertion Under Power).
LED indicators: Channel status and diagnostics.
Functional Features:
Communication: EtherNet/IP™.
Data model: Producer/Consumer.
Configuration software: Studio 5000 Logix Designer®.
Application: Controls solenoids, relays, indicators, etc.
Grouped wiring for simplified installation.
