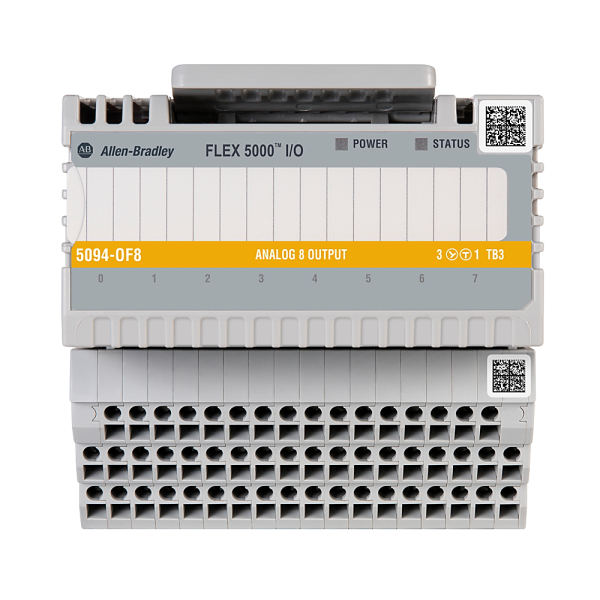

5094 Analog 8 Output
SKU: 5094-OF8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-OF8 is an 8-channel analogue output module from Rockwell Automation's FLEX 5000™ I/O family, designed for high performance industrial control applications.
It sends exact analogue signals to field devices including actuators, valves, and motors while also supporting voltage and current output ranges.
This module is appropriate for distributed control systems in which flexibility, dependability, and environmental resistance are important.
With 16-bit resolution, hot-swap functionality, and advanced diagnostics, it enables seamless integration and minimal downtime in demanding situations.
Channels have eight analogue outputs that can be configured separately.
Signal types include 0-5 V, 0-10 V, ±10 V, 0-20 mA, and 4-20 mA.
Resolution: 16 bits for excellent accuracy.
Configuration: Studio 5000 Logix Designer®.
Diagnostics include built-in fault detection and status LEDs.
Mounting: DIN rail and FLEX 5000 base.
Hot-swappable: Enables RIUP (Removal and Insertion Under Power).
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Output Channels: 8 single-ended analogue outputs.
Signal Types Supported:
Voltage: 0–5 V, 0–10 V, ±10 V.
Current: 0–20 mA, 4–20 mA.
Resolution: 16-bit.
Output Type: Non-isolated, configurable per channel.
Backplane Power: 15 V DC @ 75 mA max.
Field Power Supply: 24 V DC via SA+/SA– terminals.
Factory Calibrated: Yes (user calibration also supported).
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Corrosion Resistance: ISA S71.04 G3 compliant.
Certifications: UL, CE, ATEX, IECEx.
Physical Characteristics:
Dimensions: Approx. 94 mm (W) × 54 mm (H) × 87 mm (D).
Mounting: DIN rail or FLEX 5000 terminal base.
Hot-Swap Capability: Yes (RIUP — Removal and Insertion Under Power).
LED Indicators: Channel status and module diagnostics.
Functional Features:
Converts digital values to analogue signals for actuators, drives, and instrumentation.
Configurable via Studio 5000 Logix Designer®.
Uses Producer/Consumer model for efficient EtherNet/IP™ communication.
Supports diagnostics for signal integrity and fault detection.
Compatible with Logix 5000 controllers.
