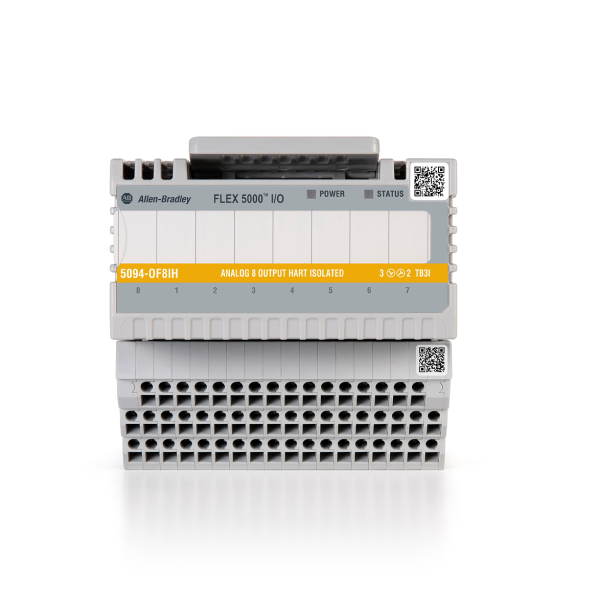

5094 Analog 8 Output Isolated HART
SKU: 5094-OF8IH
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-OF8IH is an 8-channel isolated analog output module for the FLEX 5000™ I/O platform.
It supports current, voltage, and HART communication.
It is suited for use in process control applications that require precise analog output and device-level diagnostics.
This module offers channel-to-channel isolation, supports HART-enabled field devices, and effortlessly interfaces with Logix 5000™ controllers via EtherNet/IP™.
It is designed for high-performance settings that require powerful analog control and communication.
Supports HART communication for device diagnosis and configuration.
Provides precise analog control of valves, actuators, and instrumentation.
High-noise immunity is achieved using shielded twisted-pair wiring (e.g., Belden 8761).
Allows for hot swapping and modular expansion within FLEX 5000 racks.
Perfect for process industries such as chemical, oil and gas, and water treatment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 5094-OF8IH.
Output Channels: 8 analogue outputs.
Signal Types:
Current (e.g., 4–20 mA).
Voltage (e.g., 0–10 V).
HART (Highway Addressable Remote Transducer protocol).
Isolation: Channel-to-channel and channel-to-backplane isolation.
Field Power Requirement: 24V DC to SA+/– terminals.
Shielding: Requires 5094-STB shield bar for proper grounding.
Communication: EtherNet/IP™.
Software Integration: Studio 5000 Logix Designer®.
Controller Compatibility: ControlLogix® and CompactLogix™ families.
Operating Temperature: –40 °C to +70 °C.
Certifications: UL, CE, RoHS (check product label for specifics).
Lifecycle Status: Active.
