5094XT Analog 8 Output
SKU: 5094-OF8XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

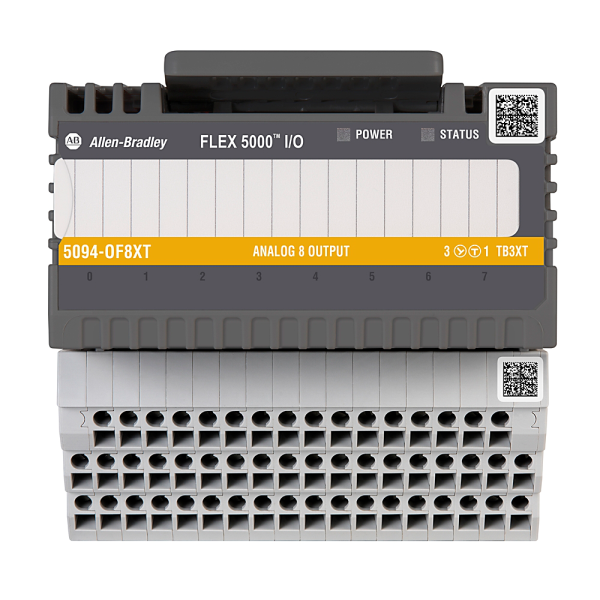

The 5094-OF8XT is an 8-channel analogue output module intended for use in severe industrial applications.
It is part of the XT (Extreme Temperature) range, which means it has a conformal coating to guard against moisture, dust, and corrosive gasses.
This module translates digital values into exact analogue signals used to control actuators, motors, valves, and other field equipment.
Each channel can be configured for voltage or current output, with ranges including ±10 V, 0-10 V, 0-5 V, 0-20 mA, and 4-20 mA.
With 16-bit resolution, it provides excellent accuracy and smooth signal management.
Mounting options include DIN rail or FLEX 5000 terminal base.
Hot-Swap Support: Yes (RIUP - Removal and Insertion Under Power).
LED Indicators:
1 module status (green/red).
One green/red SA power status.
Eight yellow/red I/O status indicators.
Communication is via EtherNet/IP™ with a Producer/Consumer mechanism.
Studio 5000 Logix Designer® was used for configuration.
Compatible controllers include the Logix 5000 family.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Channels: 8 analogue outputs (single-ended).
Signal Types Supported:
Voltage: ±10 V, 0–10 V, 0–5 V.
Current: 0–20 mA, 4–20 mA.
Resolution: 16-bit.
Output Drive Capability:
Voltage mode: ≥1000 Ω load.
Current mode: ≤500 Ω load.
Capacitive Load (Voltage): ≤1 µF.
Inductive Load (Current): ≤1 Mh.
Field Power Supply: 24 V DC via SA+/SA– terminals.
Backplane Power Consumption: ~75 mA @ 15 V DC.
Factory Calibration: Yes (user calibration also supported).
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Conformal Coating: XT-rated (ISA S71.04 G3 corrosion protection).
Certifications: UL, CE, ATEX, IECEx Zone 2/Div 2.
Physical Characteristics:
Dimensions: Approx. 94 mm (W) × 54 mm (H) × 87 mm (D).
Mounting: DIN rail or FLEX 5000 terminal base.
Hot-Swap Capability: Yes (RIUP – Removal and Insertion Under Power).
LED Indicators:
Module status (green/red).
SA power status (green/red).
I/O status per channel (yellow/red).
Functional Features:
Communication Protocol: EtherNet/IP™.
Data Model: Producer/Consumer.
Configuration Software: Studio 5000 Logix Designer®.
Use Case: Drives analogue actuators, valves, and instrumentation.
Diagnostics: Signal integrity, fault detection, and status reporting.
