5094 Relay 8 Output Isolated
SKU: 5094-OW8I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

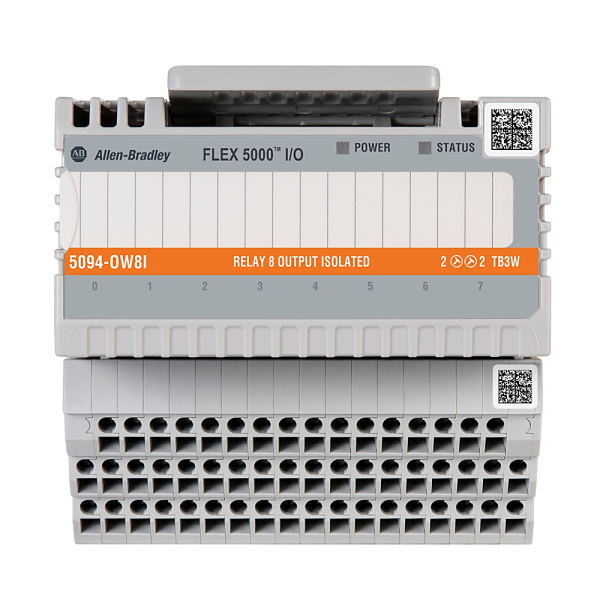

The Allen-Bradley 5094-OW8I is a high-performance relay output module intended for the FLEX 5000™ I/O platform. It has eight isolated mechanical relay outputs.
Each channel supports dry contact switching for AC or DC loads, making it excellent for applications that require electrical isolation, minimal leakage, and variable voltage control.
Output type is mechanical relay (SPST-NO).
Channels: eight isolated outputs.
Voltage range: 5-240 V AC and 5-125 V DC.
Maximum current: 2 A per channel (resistive).
Isolation: Every channel is electrically isolated from the others.
Hot-swappable: Enables RIUP (Removal and Insertion Under Power).
Diagnostics include integrated LED indications for channel health and faults.
Mounting: DIN rail with FLEX 5000 base.
Buy currently uses Select Automation shop pricing and checkout.
General Overview:
8-channel relay output module for FLEX 5000™ I/O.
Each output is electrically isolated (channel-to-channel).
Uses SPST-NO (Normally Open) mechanical contacts.
Supports RIUP (Removal and Insertion Under Power).
Compatible with Studio 5000 Logix Designer®.
Electrical Specifications:
Voltage Range:
AC: 5–240 V.
DC: 5–125 V.
Max Current per Channel: 2 A (resistive load).
Switching Capacity:
2 A @ 240 VAC or 125 VDC.
Leakage Current: None (true mechanical isolation).
Field Power Supply: 24 V DC via SA+/SA– terminals.
Power Dissipation: ~3.5 W (approx. 12 BTU/hr).
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Shock/Vibration: IEC 60068-2 compliant.
Conformal Coating Option: Available (XT variant: 5094-OW8IXT).
Physical & Diagnostic Features:
LED Indicators: Per-channel status + module diagnostics.
Mounting: DIN rail via FLEX 5000 base.
Dimensions: 94 mm (W) × 54 mm (H) × 87 mm (D).
Certifications: UL, CE, ATEX, IECEx (Zone 2 / Class I Div 2).
Typical Applications:
Switching motors, solenoids, and lighting systems.
Industrial automation and process control.
Utility and packaging systems.
AC/DC load control with electrical isolation.
