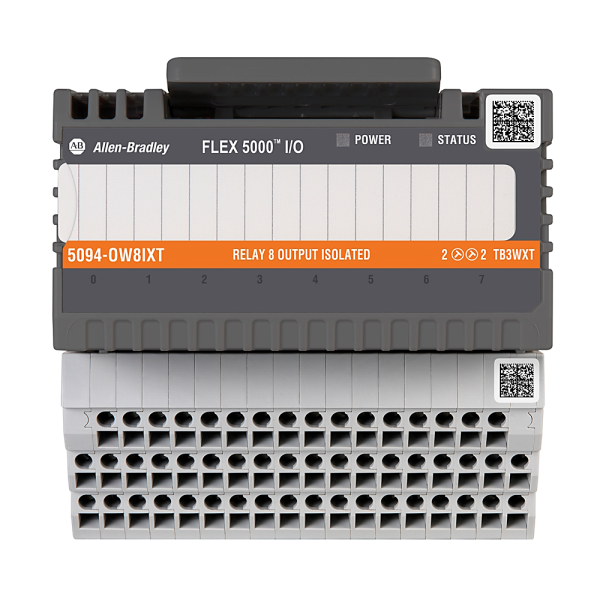

5094XT Relay 8 Output Isolated
SKU: 5094-OW8IXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-OW8IXT is an 8-channel isolated relay output module for the FLEX 5000 XT series, perfect for switching AC or DC loads in tough industrial situations.
It is designed for high-performance applications such as oil and gas, utilities, and outdoor control panels, with channel-to-channel isolation, durable relay contacts, and enhanced temperature tolerance.
Perfect for controlling solenoids, contactors, alarms, and pilot lights.
Allows for hot switching and modular expansion.
Designed for strong noise immunity and electrical isolation.
Suitable for hazardous areas and outdoor installations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 5094-OW8IXT.
Module Type: Relay Output.
Channels: 8 individually isolated outputs.
Output Type: Mechanical relay (Form A contacts).
Load Support: AC and DC loads.
Isolation: Channel-to-channel and channel-to-backplane.
Operating Voltage:
Up to 240 VAC.
Up to 30 VDC.
Max Current per Channel: Typically, 2 A (check datasheet for exact ratings).
Operating Temperature: –40 °C to +70 °C (XT-rated).
Mounting: DIN rail via FLEX 5000 XT terminal base.
Communication: EtherNet/IP™.
Software Integration: Studio 5000 Logix Designer®.
Controller Compatibility: ControlLogix® 5580, CompactLogix™ 5380.
Certifications: UL, CE, CSA, ATEX Zone 2, IECEx2.
Lifecycle Status: Active.
