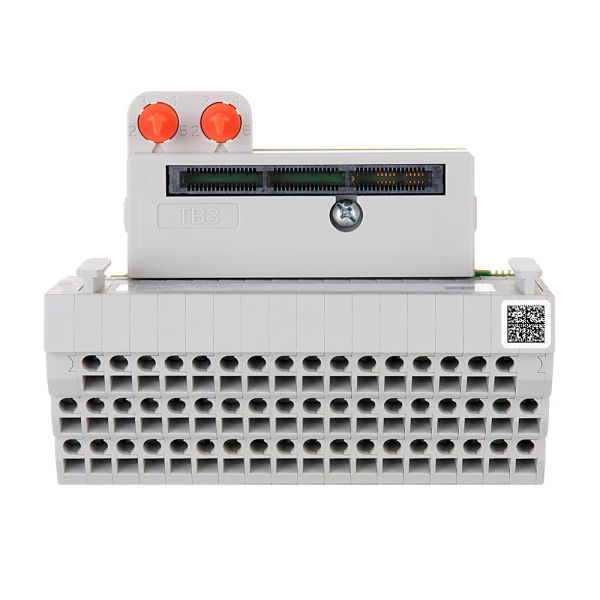

5094 RTB 32 Output Screw
SKU: 5094-RTB32C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A 32-point output screw terminal block, the 5094-RTB32C is made to work with FLEX 5000 I/O output modules.
It gives output wire connections in industrial automation systems a safe and orderly method.
Key features:
Easy installation, maintenance, and module replacement are made possible by the removable design, which eliminates the need to unplug individual wires.
32 Screw Terminals: Provides output signals with dependable and safe connections.
Conformal Coating: Provides protection against tough environments such as humidity, dust, and corrosive substances, making it perfect for challenging industrial situations.
Wire Size Compatibility: Accepts wire gauges ranging from 22 to 14 AWG.
Operating Temperature: Rated for harsh circumstances ranging from -40 °C to +70 °C.
Dissipation of power: about 3.5 W.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 5094-RTB32C.
Product Type: Removable Terminal Block (RTB).
Terminal Count: 32 output terminals.
Terminal Style: Screw-type connections.
Wire Size Range: Accepts 22–14 AWG wires.
Mounting: Designed for FLEX 5000 I/O modules.
Coating: Conformal coating for enhanced environmental resistance.
Power Dissipation: 3.5 Watts.
Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F).
Status: Active product in current lifecycle.
