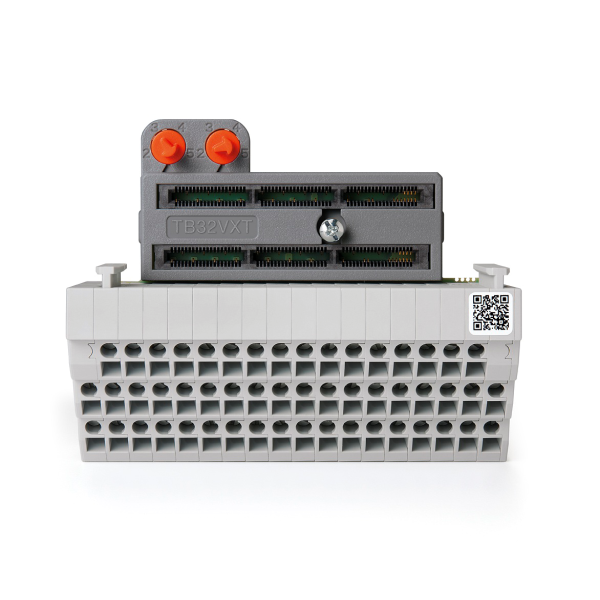

5094XT RTB 32 Input Spring
SKU: 5094-RTB32VSXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Allen-Bradley 5094-RTB32VSXT is a removable terminal block (RTB) intended for use with FLEX 5000™ I/O modules in tough industrial applications.
This XT (eXtended Temperature) model has 32 input channels and spring clamp connectors, making for quick, tool-free wiring and secure connections.
It’s intended to endure harsh temperatures, high vibration, and corrosive atmospheres, making it perfect for use in oil & gas, mining, and outdoor installations.
The RTB allows for quick shifting of I/O modules without damaging field wiring, which simplifies maintenance and reduces downtime.
32-channel input terminal block.
Spring clamp connectors (no screwdriver needed).
XT certified for extended temperature and harsh environments.
Supports hot-swap functionality.
Compatible with Flex 5000™ input modules.
Certified for hazardous sites (Class I Division 2, Zone 2).
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Mechanical Specifications:
Terminal Type: Spring clamp (tool-free wiring).
Channels Supported: 32 input points.
Connection Style: Vertical spring terminals.
Isolation Voltage: 25 V continuous.
Wire Size Supported:
Solid or stranded copper wire.
Typically, 0.25–2.5 mm² (24–12 AWG).
Mounting: Clips directly onto FLEX 5000™ I/O base.
Enclosure Style: Open type (non-sealed).
Environmental Ratings:
XT Series: Designed for extended temperature and harsh environments.
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Corrosion Resistance: Conformal coating compliant with ISA S71.04 G3.
