5094XT RTB 32 Input Screw
SKU: 5094-RTB32VXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

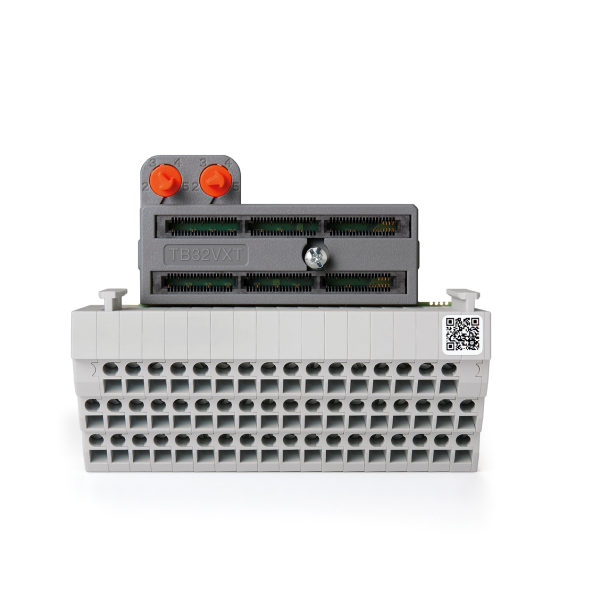

The 5094-RTB32VXT is a 32-point removable terminal block with screw-type input terminals designed for use in harsh industrial conditions.
It is part of the FLEX 5000 platform's XT (Extreme Temperature) family, which provides increased durability and environmental resilience.
Extreme Temperature Tolerance: Perfect for high-heat or cold industrial environments.
Screw terminals provide stable connections in vibration-prone environments.
Removable Design: Allows for easy module replacement without affecting field wiring.
Industrial-Grade Construction: Ideal for oil and gas, mining, and heavy industry.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Functional Specs:
Terminal Count: 32 input screw terminals.
Connection Type: Screw clamp (secure, vibration-resistant).
Input Type: Sinking type 12/24 V DC input modules.
Isolation Voltage: Up to 250 V.
Wire Support: Solid or stranded copper wires rated up to 105 °C.
Power Supply Requirement: SELV-listed external power supply.
Hot-Swap Capability: RIUP not supported (no hot swapping).
Mechanical & Environmental:
Series: FLEX 5000™ XT (Extreme Temperature).
Mounting Style: Snap-on to 5094-TB32VXT Terminal Base Assembly.
Certifications: RMS, EX, T4 IECEx temperature code rating.
Application: High-density performance in hazardous or demanding environments.
Lifecycle Status: Active.
UPC Code: 191326731171.
