5094 RTB AC Screw
SKU: 5094-RTB3AC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

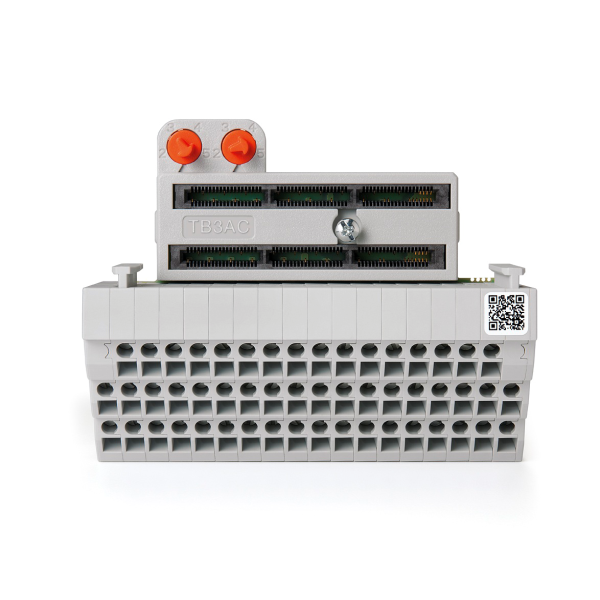

The 5094-RTB3AC is a Removable Terminal Block (RTB) with screw-type terminals designed for AC signal connections.
The FLEX 5000™ platform enables industrial automation systems to be flexible, durable, and easy to install.
Screw terminals provide stable connections even in high-vibration settings.
Removable Design: Allows for easy module replacement without affecting field wiring.
Compact Form Factor: This design is ideal for control panels with little space.
Industrial-Grade Construction: Designed for harsh conditions and AC applications.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
I/O Current Rating: 2 A @ 240 V AC.
Sensor/Actuator Power Rating: 10 A @ 240 V AC.
Frequency: 50/60 Hz.
Isolation Voltage: 250 V continuous.
Wire Type: Copper only.
Wire Size Range: 14–22 AWG (solid or stranded).
Mechanical & Design Details:
Terminal Count: 3 screw-type AC terminals.
Mounting Style: Snap-on to FLEX 5000 AC modules.
Enclosure Type: Open style.
Dimensions: 53.0 mm (H) × 94.0 mm (W) × 76.0 mm (D).
Weight: Approx. 202 g.
Compatible Base Assembly: 5094-TB3AC.
Compatible Mounting Base: 5094-MB.
