5094 RTB AC Spring
SKU: 5094-RTB3ACS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

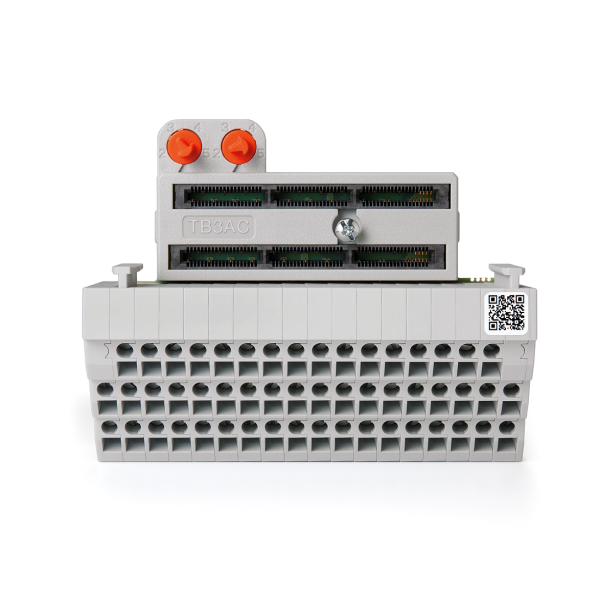

The 5094-RTB3ACS is a removable terminal block that works with FLEX 5000™ I/O modules in industrial automation systems.
It has spring clamp terminals, which enable tool-free wiring, making installation faster and more secure, particularly in high-vibration applications.
This RTB is designed to handle AC signal and power connections and can sustain up to 10 A at 240 V AC.
Its compact and durable design assures dependable performance under harsh situations, and it is compatible with Allen-Bradley control systems.
The 5094-RTB3ACS is made of high-strength materials, ensuring exceptional durability and long-term reliability.
It's perfect for applications that require stable spring force and low maintenance.
Key Features:
Spring clamp connection for fast, secure wiring.
Rated for 220–240 V AC, 50/60 Hz.
Supports up to 10 A actuator/sensor power.
Compatible with FLEX 5000 base assemblies.
Certified to CE, UL, RoHS, ATEX, IECEx standards.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Rated Voltage: 240 V AC.
Frequency: 50/60 Hz.
I/O Current Rating: 2 A @ 240 V AC.
Sensor/Actuator Power Rating: 10 A @ 240 V AC.
Isolation Voltage: 250 V continuous.
Wire Type: Copper only.
Wire Size Range: 14–22 AWG (solid or stranded).
Mechanical & Design Features:
Connection Type: Spring clamp terminals (tool-free wiring).
Terminal Count: 3 AC terminals.
Mounting Style: Snap-on to FLEX 5000 AC modules.
Dimensions: Approx. 53 mm (H) × 94 mm (W) × 76 mm (D).
Weight: ~202 g.
Compatible Base Assembly: 5094-TB3AC.
Compatible Mounting Base: 5094-MB.
Environmental & Durability:
Storage Temperature: –40 °C to +85 °C.
Operating Shock: Rated up to 30 g.
Corrosion Resistance: ISA S71.04 G2 compliant.
