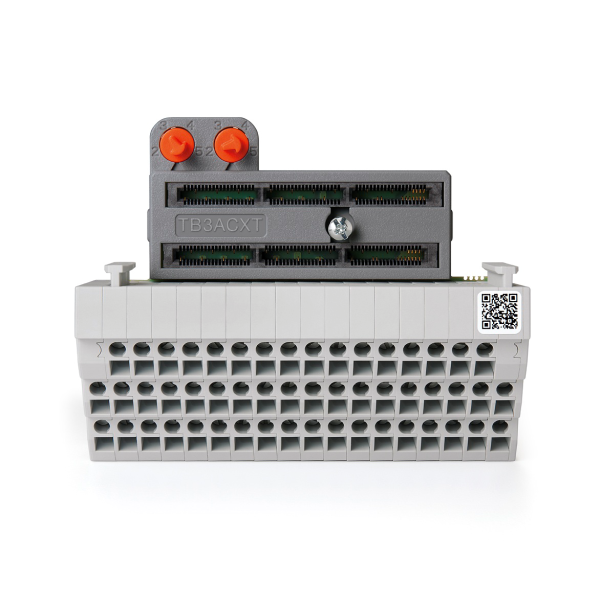

5094XT RTB AC Spring
SKU: 5094-RTB3ACSXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-RTB3ACSXT Removable Terminal Block (RTB) is compatible with Allen-Bradley FLEX 5000™ XT I/O modules.
Its spring-clamp terminals, designed for AC wire applications, enable quick, safe, and tool-free connections.
Its XT designation indicates that it is designed for harsh situations, providing greater protection via conformal coating and superior temperature resistance.
This RTB is perfect for modular automation systems that need high dependability, simple maintenance, and tough performance in demanding industrial environments.
Spring-clamp connections provide quick and vibration-resistant wiring.
AC wiring support is optimized for 240V AC applications.
XT-rated: Can withstand large temperature ranges and corrosive atmospheres.
Hot-swap capable: Allows module replacement without system shutdown.
Compact design saves panel space and simplifies installation.
Buy currently uses Select Automation shop pricing and checkout.
General Specifications:
Catalogue Number: 5094-RTB3ACSXT.
Series: FLEX 5000™ XT.
Type: Removable Terminal Block (RTB).
Connection Style: Spring clamp (tool-free wiring).
Channels Supported: AC wiring interface for compatible I/O modules.
Mounting Base Compatibility: 5094-MBXT.
Terminal Base Compatibility: 5094-TB3ACXT.
Enclosure Type: Open style (non-sealed).
Electrical Ratings:
Input/Output Rating: 2 A @ 240 V AC.
Sensor/Actuator Power: 10 A @ 240 V AC.
Frequency: 50/60 Hz.
Isolation Voltage: 250 V continuous.
Wire Type: Copper only.
Wire Size Supported: 14–22 AWG (solid or stranded).
Environmental Ratings:
XT Designation: Conformal coating for harsh environments.
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Corrosion Resistance: ISA S71.04 G3 compliant.
Physical Characteristics:
Dimensions: 53 mm (H) × 94 mm (W) × 76 mm (D).
Weight: Approx. 202 g.
Hot-Swap Support: Yes (when used with compatible FLEX 5000 modules).
Status Indicators: None (passive terminal block).
