5094XT RTB AC Screw
SKU: 5094-RTB3ACXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

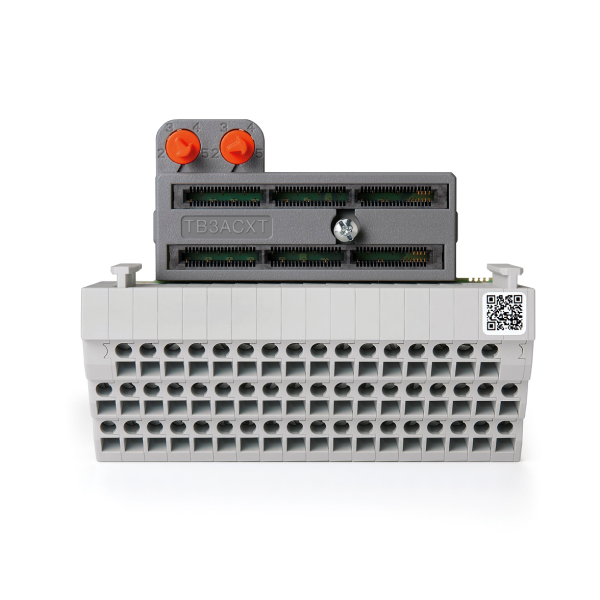

The 5094-RTB3ACXT is a durable AC screw-type detachable terminal block compatible with FLEX 5000™ XT I/O modules.
It offers safe and dependable connections for AC power and signal wiring in high-vibration and high-temperature industrial situations since it is designed for harsh conditions.
Key features:
Type: Screw clamp terminal block.
Channels: Three AC terminals.
Voltage Rating: Up to 240 V AC.
Current Capacity: 2 A per I/O channel, 10 A for sensor and actuator power.
Wire Compatibility: 14-22 AWG copper wires.
Mounting: Snaps into compatible FLEX 5000 XT base units.
Durability: Designed to withstand extreme circumstances such as shock, vibration, and corrosion.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specs:
Rated Voltage: 240 V AC.
Frequency: 50/60 Hz.
I/O Current Rating: 2 A @ 240 V AC.
Sensor/Actuator Power Rating: 10 A @ 240 V AC.
Isolation Voltage: 250 V continuous.
Wire Type: Copper only.
Wire Size Range: 14–22 AWG (solid or stranded).
Mechanical & Design:
Terminal Count: 3 screw-type AC terminals.
Connection Type: Screw clamp (secure, vibration-resistant).
Mounting Style: Snap-on to FLEX 5000 XT AC modules.
Dimensions: Approx. 53 mm (H) × 94 mm (W) × 76 mm (D).
Weight: ~202 g.
Compatible Base Assembly: 5094-TB3ACXT.
Compatible Mounting Base: 5094-MB.
Environmental & Durability:
Series: FLEX 5000™ XT (Extreme Temperature).
Operating Temperature Range: Designed for harsh industrial conditions.
Corrosion Resistance: Meets ISA S71.04 G2 standards.
Shock Rating: Up to 30 g.
