5094 RTB Spring
SKU: 5094-RTB3S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

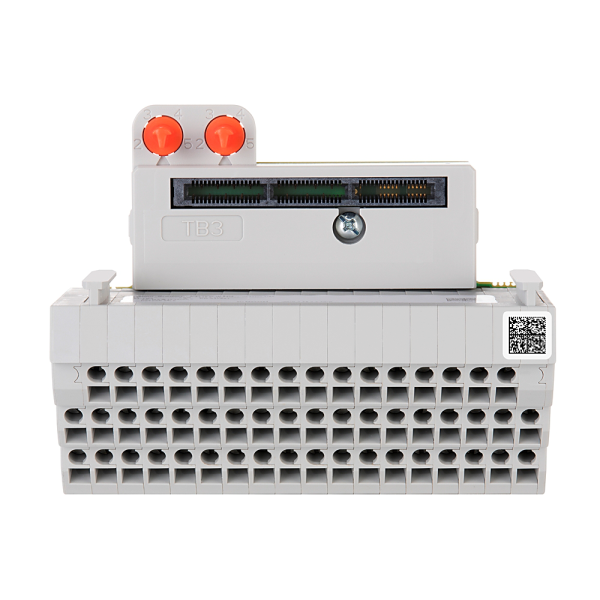

The 5094-RTB3S is a removable terminal block compatible with FLEX 5000™ I/O modules.
Spring-clamp terminals enable rapid, secure, and tool-free wiring, making it perfect for high-vibration situations or applications that require frequent repair.
This RTB is part of the modular FLEX 5000 system, which provides distributed I/O via high-speed EtherNet/IP™ communication.
Connection: Spring clamp (no tool required).
Flexible 5000 I/O modules are compatible.
Mounting: Connects to FLEX 5000 terminal bases.
Hot-Swap Support: Allows module change without powering down.
Wiring Efficiency: Reduces installation time while increasing reliability.
Compact Design: Minimizes panel space.
Buy currently uses Select Automation shop pricing and checkout.
Product Overview:
Catalogue Number: 5094-RTB3S.
Type: Removable Terminal Block.
Connection Style: Spring clamp (tool-free wiring).
System Compatibility: FLEX 5000™ I/O platform.
Lifecycle Status: Active.
Electrical & Wiring Specifications:
Wire Type: Copper only.
Wire Gauge Supported: Typically, 14–22 AWG (solid or stranded).
Voltage Rating: Module-dependent (commonly up to 250V).
Current Rating: Varies by paired I/O module.
Hot-Swap Capability: Yes, when used with compatible FLEX 5000 modules.
Shielding Support: Compatible with 5094-STB shield bar accessory for analogue/high-speed signals.
Environmental Ratings:
Operating Temperature: –20 °C to +60 °C (standard industrial range).
Humidity: Up to 95% non-condensing.
Enclosure Type: Open-style (not sealed or XT-rated).
Physical Characteristics:
Mounting Base Compatibility: FLEX 5000 terminal bases.
Dimensions: Compact form factor (exact dimensions vary by module).
Weight: Lightweight, designed for modular installation.
