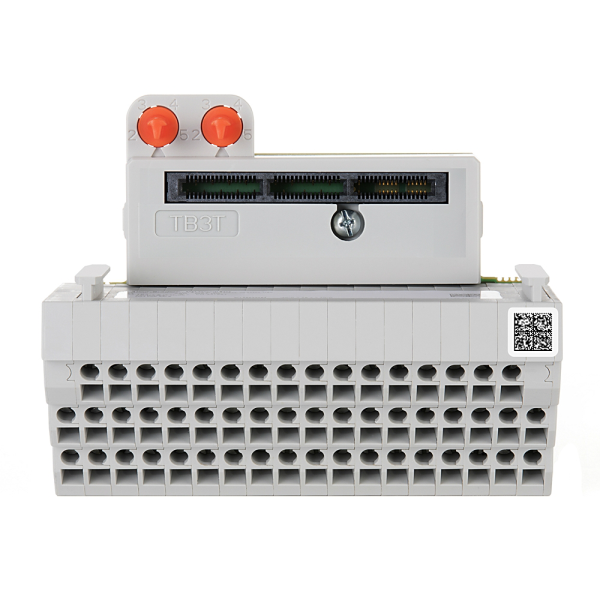

5094 RTB CJC Screw
SKU: 5094-RTB3T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-RTB3T Removable Terminal Block (RTB) is compatible with Allen-Bradley's FLEX 5000™ I/O modules.
It has screw-type terminals for secure and reliable electrical connections, making it perfect for industrial applications requiring vibration resistance and long-term endurance.
What distinguishes this RTB is its incorporated Cold Junction Compensation (CJC) thermistor, which allows for precise temperature measurements when used with thermocouple input modules.
This built-in CJC eliminates the need for external compensation hardware, making installation easier and increasing measurement precision.
Screw clamp connections ensure strong wire retention.
Cold Junction Compensation (CJC) improves thermocouple accuracy.
Hot-swappable modules allow for easy maintenance and replacement.
It is compatible with FLEX 5000 analogue input modules.
Compact and modular architecture allows for a more simplified panel configuration.
Buy currently uses Select Automation shop pricing and checkout.
Product Overview:
Model: 5094-RTB3T.
Type: Removable Terminal Block (RTB).
Series: FLEX 5000™ I/O.
Connection Style: Screw-type terminals.
Special Feature: Integrated Cold Junction Compensation (CJC) thermistor.
Electrical & Wiring Specifications:
Terminal Type: Screw clamp for secure wire retention.
Wire Type: Copper only.
Supported Wire Gauge: 0.25–2.5 mm² (24–12 AWG), solid or stranded.
CJC Functionality: Built-in thermistor for accurate thermocouple readings.
Hot-Swap Capability: Yes, when used with compatible FLEX 5000 modules.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Shock & Vibration: IEC 60068-2 compliant.
