5094 RTB CJC Spring
SKU: 5094-RTB3TS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

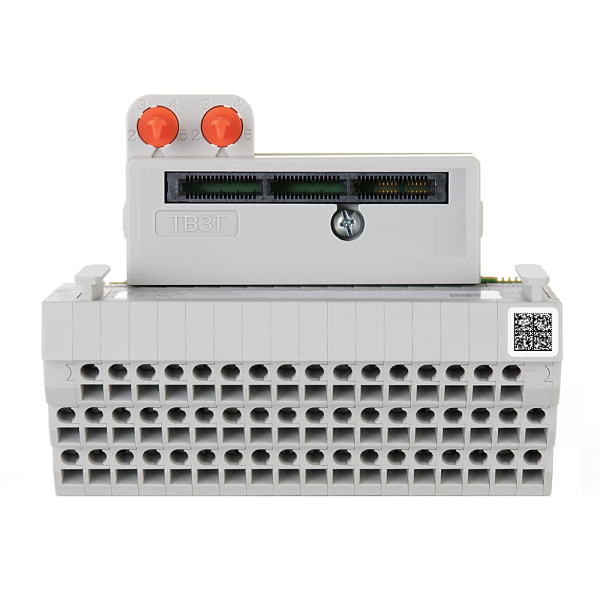

The 5094-RTB3TS is a removable terminal block (RTB) for FLEX 5000™ I/O modules.
Spring-clamp terminals allow for quick, tool-free wiring, making it perfect for high-density installations and locations where vibration resistance is crucial.
This RTB has an incorporated Cold Junction Compensation (CJC) thermistor, which allows for exact temperature measurement when combined with thermocouple input modules.
The built-in CJC makes setup easier and increases accuracy by automatically correcting for ambient temperature at the connecting site.
Push-in Spring terminals provide quick and secure connections.
CJC thermistor is integrated to improve thermocouple accuracy.
Hot-swappable with other FLEX 5000 modules.
Compact, modular design allows for easier installation.
Ideal for use with analogue input modules in temperature monitoring and process control applications.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Current: 100 mA.
Sensor Sourcing Voltage: 1.8 A at 24V DC.
Operating Voltage Range: 18–32V DC.
Module Current Capacity: Up to 10 A.
Basic Insulation Voltage: 250V AC.
Cold Junction Compensation: Integrated thermistor for thermocouple accuracy.
Wiring & Terminal Details:
Terminal Type: Spring-clamp (push-in) terminals.
Wire Type: Copper only.
Supported Wire Gauge: 0.25–2.5 mm² (24–12 AWG), solid or stranded.
Tool-Free Wiring: Yes — ideal for fast installation and maintenance.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Relative Humidity: 5% to 95% (non-condensing).
Hazardous Location Compliance:
Class I, Division 2, Zone 2 (Groups A–G).
Suitable for extreme environments (G1, G2, G3).
