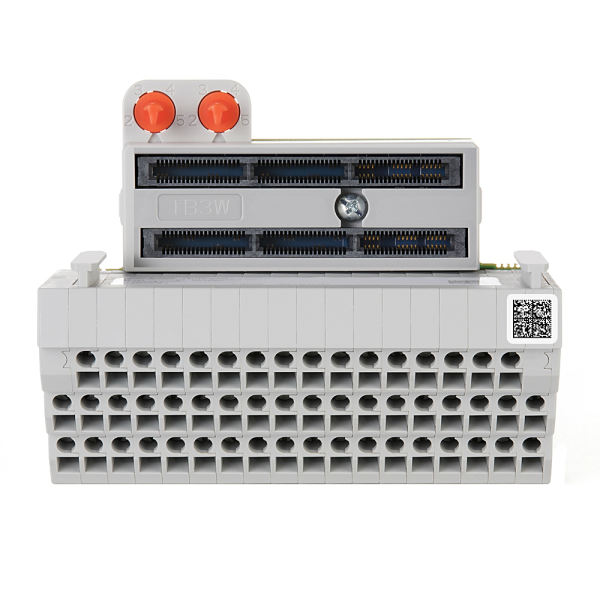

5094 RTB Relay Spring
SKU: 5094-RTB3WS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-RTB3WS provides the same electrical performance as the screw version, but with spring-clamp terminals for faster, tool-free wiring.
This makes it perfect for high-speed installations or maintenance-intensive configurations.
It has the same voltage and current specifications and is certified for hazardous environments.
Compatible with Logix 5000 controllers and designed to function flawlessly with the Studio 5000 Logix Designer software.
It has IP54 ingress protection, can handle sensor actuator (SA) power of up to 10 A, and operates reliably at altitudes of up to 2000 meters.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Voltage Rating: Up to 250 V AC / 125 V DC.
Current Rating: 2 A per relay channel.
Isolation Voltage: 250 V continuous.
Wire Type: Copper only.
Supported Wire Sizes:
Solid: 14–22 AWG.
Stranded: 14–22 AWG.
Connection Type: Spring clamp (tool-free wiring).
Mechanical Features:
Terminal Count: 3 relay output terminals.
Mounting Style: Snap-on to FLEX 5000 relay output modules.
Form Factor: Compact, DIN-rail compatible.
Tool-Free Design: Quick installation and maintenance.
Colour: Typically, black or grey (varies by region).
Weight: Approx. 202 g.
Dimensions: ~53 mm (H) × 94 mm (W) × 76 mm (D).
Environmental & Compliance:
Operating Temperature: –20 °C to +60 °C.
Storage Temperature: –40 °C to +85 °C.
Shock Resistance: 30 g.
Corrosion Resistance: ISA S71.04 G2 compliant.
Altitude Rating: Up to 2000 meters.
Certifications:
UL Listed.
CE Marked.
ATEX / IECEx Zone 2 compliant.
RoHS compliant.
