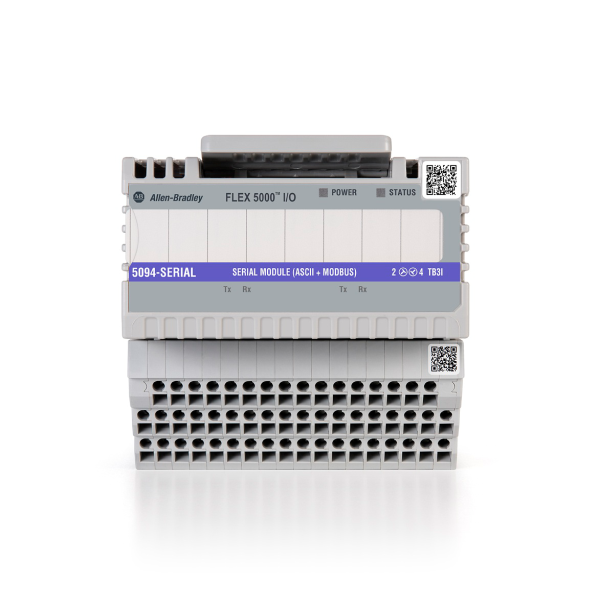

5094 Serial Module
SKU: 5094-SERIAL
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-SERIAL module integrates serial devices into current Logix control systems.
It supports the RS-232 and RS-485 protocols, making it perfect for connecting legacy equipment such as barcode scanners, HMIs, weigh scales, and Modbus devices to EtherNet/IP networks.
Protocol Supported:
RS-232.
RS-485 (half and full duplex).
ASCII, Modbus RTU, and Modbus ASCII.
Ports:
Two isolated serial channels.
Baud rate is configurable (300 to 115.2 kbps).
Variable data bits, stop bits, parity, and flow control.
Integration:
Integrates seamlessly with Studio 5000 Logix Designer®.
Uses Add-On Instructions (AOIs) to simplify programming.
Communicates using the Producer/Consumer model over EtherNet/IP.
Diagnostics:
Channel-level status indicators.
Connection status and fault detection
Supports generic ASCII input tags for diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Communication & Protocols:
Supports RS-232, RS-485 (half/full duplex), and RS-422.
Compatible with ASCII, Modbus RTU, and Modbus ASCII.
Two isolated serial channels.
Baud rate range: 300 to 115.2 kbps.
Configurable:
Data bits: 7 or 8.
Stop bits: 1 or 2.
Parity: None, Even, Odd.
Flow control: RTS/CTS (hardware), XON/XOFF (software).
Hardware & Power:
Requires 24V DC field-side power via SA+/SA– terminals.
Compatible with FLEX 5000™ terminal bases.
Optional shield bar accessory for grounding.
Termination resistor recommended for RS-485 wiring.
Environmental Ratings:
Operating temperature: –40 °C to +70 °C.
Storage temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Shock: 30 g peak.
Vibration: 5 g, 10–500 Hz.
Corrosion resistance: ISA S71.04 G3 compliant.
Certified for ATEX/IECEx Zone 2, UL, and CE.
Physical Dimensions:
Width: 94 mm.
Height: 54 mm.
Depth: 87 mm.
Weight: ~200 g.
Software & Integration:
Configurable via Studio 5000 Logix Designer®.
Uses Add-On Instructions (AOIs) for simplified programming.
Communicates over EtherNet/IP using Producer/Consumer model.
Diagnostic features include:
Channel-level status indicators.
Connection health monitoring.
ASCII input tags for diagnostics.
