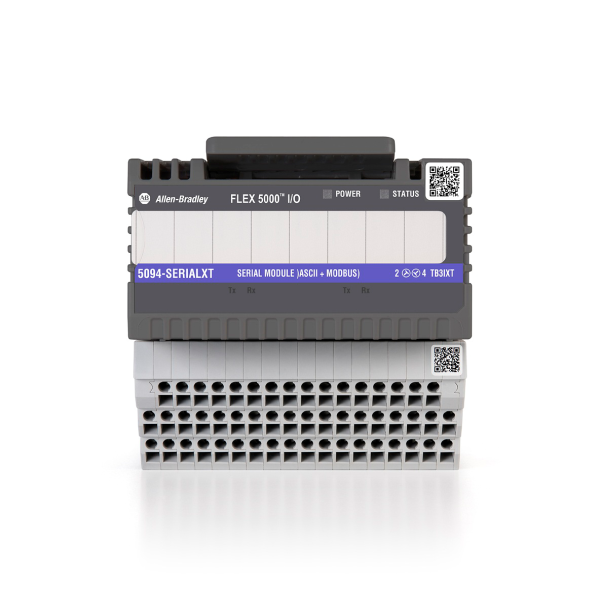

5094XT Serial Module
SKU: 5094-SERIALXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-SERIALXT module of the FLEX 5000™ XT series enables serial communication between legacy or third-party devices and a Logix 5000 control system.
It supports the RS-232 and RS-485 protocols, making it excellent for integrating barcode scanners, weigh scales, sensors, and other serial-based equipment into modern Ethernet/IP designs.
Key features:
Supported Protocols:
RS-232
RS-485 (half and full duplex).
Ports:
One serial port with adjustable parameters.
Baud rates are up to 115.2 kbps.
Data Handling:
ASCII and Modbus RTU support.
Configurable framing, parity, stop bits, and flow control.
Integration:
Integrated with Studio 5000 Logix Designer®.
Uses Add-On Instructions (AOIs) to simplify programming.
Diagnostics:
Channel-level status indicators.
Fault detection and communication health monitoring.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Communication Specs:
Supports RS-232, RS-422, and RS-485 serial protocols.
Baud rate range: 300 to 115,200 bps.
Configurable data bits: 7 or 8.
Stop bits: 1 or 2.
Parity options: None, Even, Odd.
Flow control: None or RTS/CTS.
Isolation: 500V (port-to-backplane).
Supports ASCII, Modbus RTU, and Modbus ASCII protocols.
Integrated with Studio 5000 Logix Designer® using Add-On Instructions (AOIs).
Environmental Ratings:
Operating temperature: –40 °C to +70 °C.
Storage temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Shock resistance: 30g peak.
Vibration resistance: 5g, 10–500 Hz.
Corrosion rating: ISA S71.04 G3.
Certified for ATEX/IECEx Zone 2 hazardous locations.
Physical & Installation:
Mounts on DIN rail.
Compatible with FLEX 5000 XT terminal bases.
Recommended wiring: shielded twisted-pair for RS-485.
Approximate dimensions: 120 mm (H) × 35 mm (W) × 105 mm (D).
Weight: ~250 grams.
