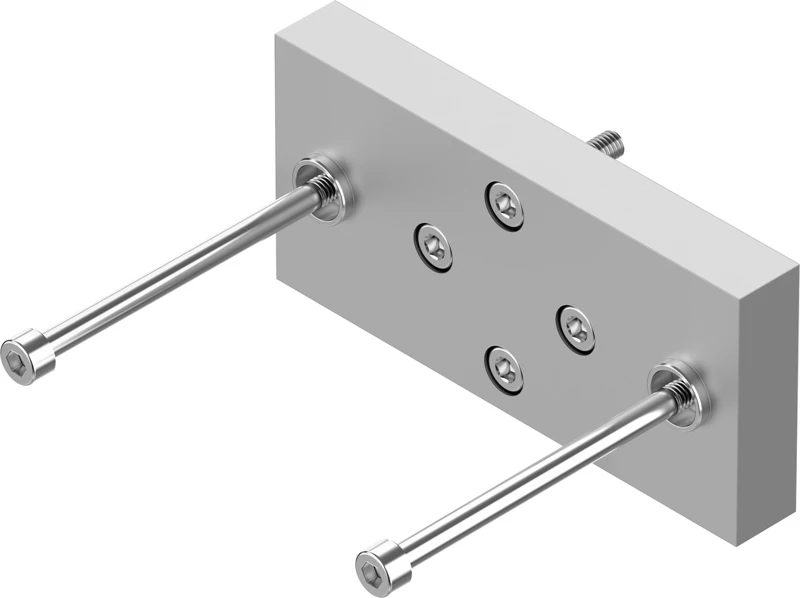

Semi-rotary drives DRRD, Accessories, Adapter kit, DHAA-D-E21-70...110-Q11-32-E
SKU: 5154626
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Semi-rotary drives DRRD, twin pistons
• Accessories, Adapter kit
• Mounting position optional
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Product weight 434 g
• Type of mounting Via through-hole and screw, Via centring sleeve
• Note on materials RoHS-compliant
• Material adapter plate Anodised wrought aluminium alloy
• Material screws Galvanised steel
• Material centering elements Steel
Buy currently uses Select Automation shop pricing and checkout.
Semi-rotary drives DRRD, twin pistons
• Rack and pinion principle
• Very high accuracy in the end positions
• Very high load bearing capacity
• Very good axial run-out at the flange shaft
• High mass moments of inertia
• Low backlash and good dynamic response
• Splash-proof design to IP65 based on EN 60529
• Defined interfaces
• Supply port at one end
• Choice of mounting options
• Ideal for use in handling applications
