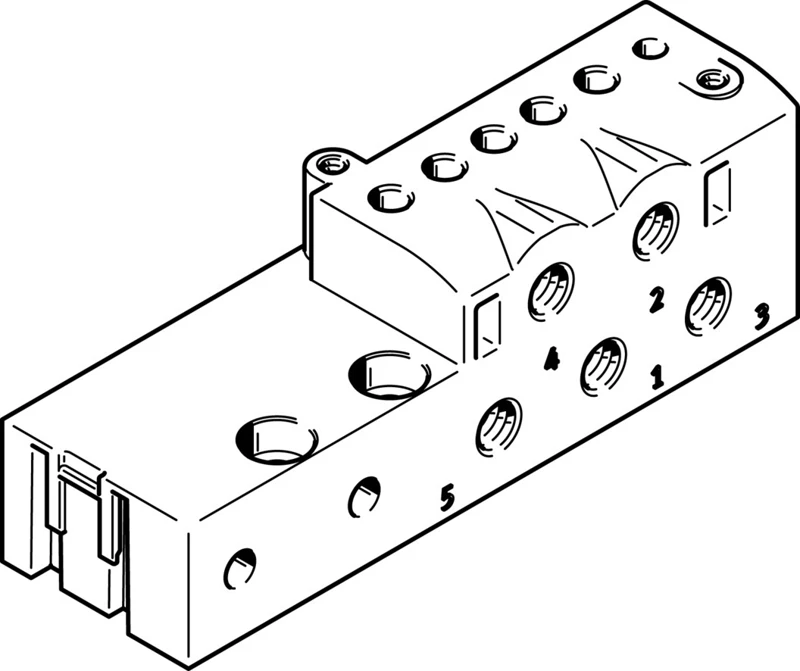

Sub-base, MHA2-AS-5-M5
SKU: 525120
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MH2, MH3, MH4, fast-switching valves
• Accessories, Sub-base for MHP2 and MHA2
• Individual sub-base Pneumatic connection: thread M5, 1 valve position
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Product weight 88 g
• Mounting method for sub-base With through-hole
• Mounting method for valve Via female thread
• Pneumatic connection, port 1 M5
• Pneumatic connection, port 2 M5
• Pneumatic connection, port 3 M5
• Pneumatic connection, port 4 M5
• Pneumatic connection, port 5 M5
• Material sub-base Die-cast zinc
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve MH2, MH3, MH4
• Fast-switching valves for higher flow rates.
• Directly actuated poppet valve
• Fast-switching valve: switching times down to 2 ms
• Direct mounting, individual sub-base, manifold assembly
• Manifold block for 2 ... 10 valves
