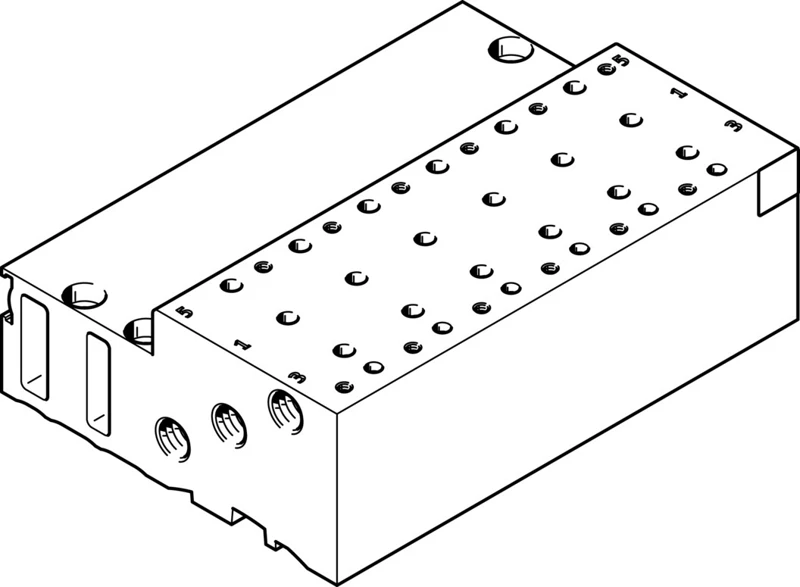

Manifold block, MHP2-PR6-5
SKU: 525124
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MHP2, fast-switching valves
• Accessories, Manifold block, Pneumatic connection
• Max. number of valve positions 6
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Product weight 426 g
• Mounting method for sub-base With through-hole, With H-rail
• Mounting method for valve Via female thread
• Pneumatic connection, port 1 M7
• Pneumatic connection, port 3 M7
• Pneumatic connection, port 5 M7
• Material sub-base Wrought aluminium alloy
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve MH2, MH3, MH4
• Fast-switching valves for higher flow rates.
• Directly actuated poppet valve
• Fast-switching valve: switching times down to 2 ms
• Direct mounting, individual sub-base, manifold assembly
• Manifold block for 2 ... 10 valves
