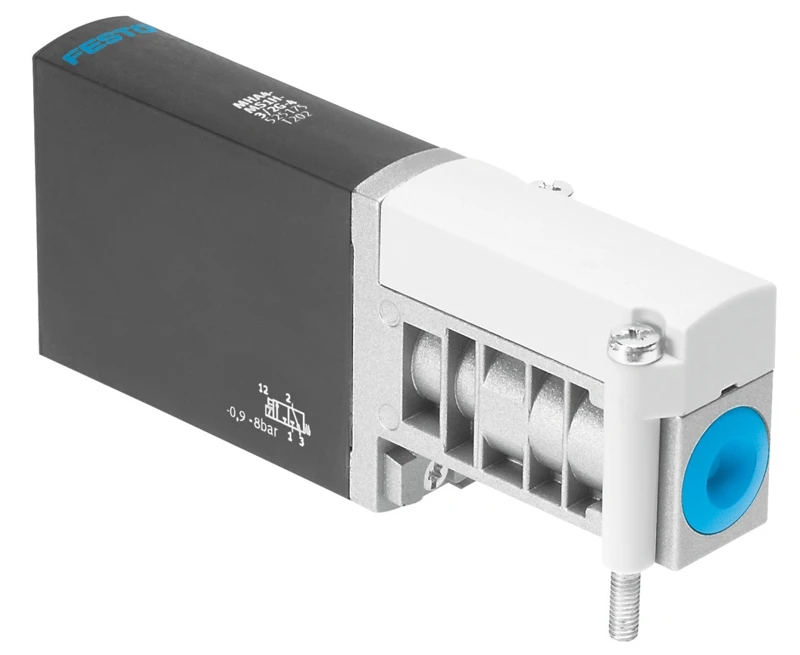

Solenoid valve, MHA4-MS1H-3/2G-4
SKU: 525175
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MHA4, fast-switching valves
• Valve function 3/2-way, closed, monostable
• Type of actuation Electric
• Construction width 18 mm
• Standard nominal flow rate (standardised to DIN 1343) 400 l/min
• Pneumatic working port Sub-base
• Operating voltage 24V DC
• Operating pressure -0.09 MPa ... 0.8 MPa
• Operating pressure -0.9 bar ... 8 bar
• Operating pressure -13.05 psi ... 116 psi
• Design Pressure-relieved poppet valve
• Type of reset Mechanical spring
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve MH2, MH3, MH4
• Fast-switching valves for higher flow rates.
• Directly actuated poppet valve
• Fast-switching valve: switching times down to 2 ms
• Direct mounting, individual sub-base, manifold assembly
• Manifold block for 2 ... 10 valves
