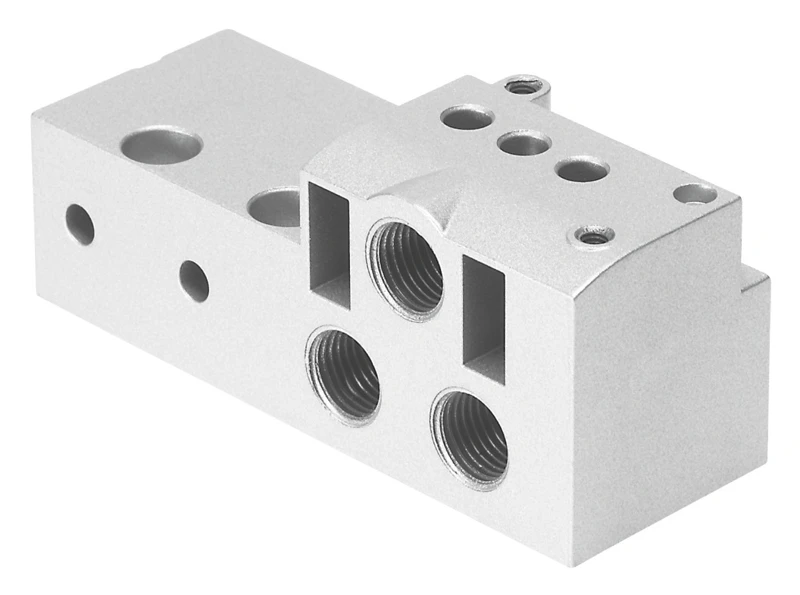

Sub-base, MHA4-AS-3-1/4
SKU: 525227
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MH2, MH3, MH4, fast-switching valves
• Accessories, Sub-base for MHP4 and MHA4
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Product weight 310 g
• Mounting method for sub-base With through-hole
• Mounting method for valve Via female thread
• Pneumatic connection, port 1/33 G1/4
• Pneumatic connection, port 2 Female thread G1/4
• Pneumatic connection, port 3/11 G1/4
• Material sub-base Die-cast zinc
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve MH2, MH3, MH4
• Fast-switching valves for higher flow rates.
• Directly actuated poppet valve
• Fast-switching valve: switching times down to 2 ms
• Direct mounting, individual sub-base, manifold assembly
• Manifold block for 2 ... 10 valves
