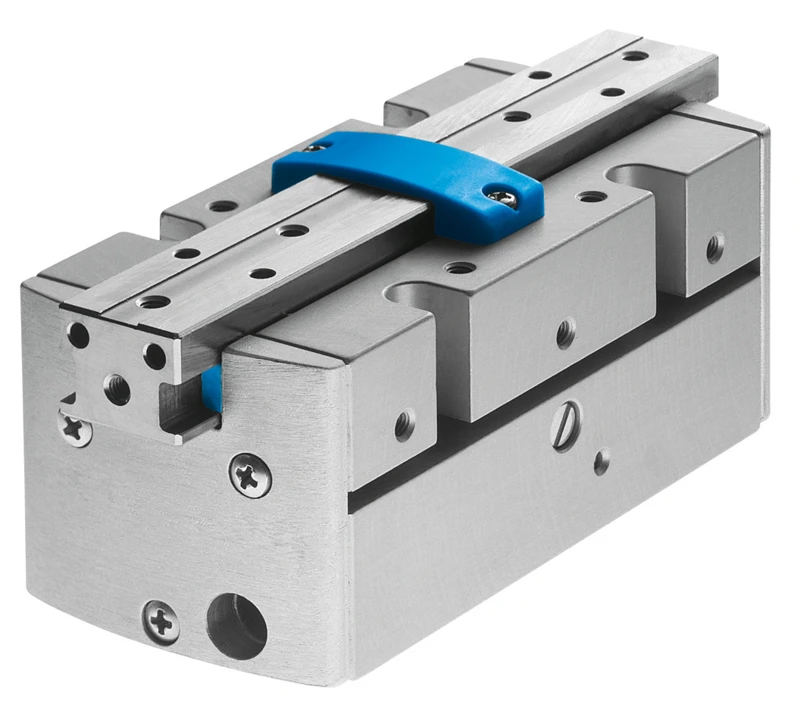

Parallel gripper, HGPP-32-A-G2
SKU: 525666
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel gripper HGPP, Single-acting or with gripping force retention, closing
• Size 32
• Stroke per gripper jaws 12.5 mm
• Max. replacement accuracy 0.1 mm
• Max. angular gripper jaw backlash ax, ay 0 deg
• Max. gripper jaw backlash Sz 0 mm
• Rotationally symmetrical 0.05 mm
• Repetition accuracy, gripper ≤0.02 mm
• Number of gripper jaws 2
• Drive system Pneumatic
• Mode of operation Double-acting
• Gripper function Parallel
• Gripper force back-up During closing
• Design Rack and pinion
• Position detection Via Hall sensor, Via inductive sensors
Buy currently uses Select Automation shop pricing and checkout.
Parallel gripper HGPP
• Totally accurate: high-precision gripper with gripper jaw guide.
• High-precision gripper jaw guide
• Very flexible thanks to versatile attachment, mounting and application options
• Can be used as a double- and single-acting gripper
• Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC)
• Suitable for external and internal gripping
