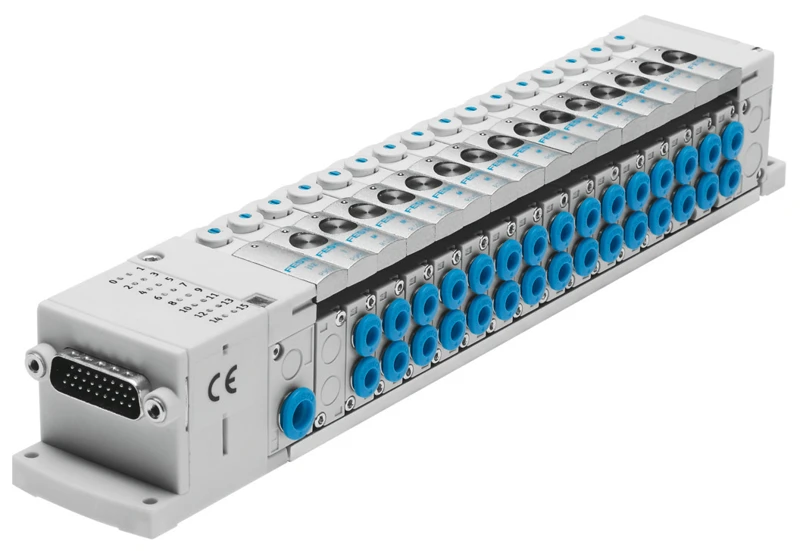

Valve terminal, CPV-SC-MP-VI

Specifications • Valve terminal CPV-SC, Smart Cubic • Electrical control CPI installation system, Individual connection, Multi-pin plug • Electrical I/O system yes • Terminal type 80 • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Media temperature -5 °C ... 50 °C • Ambient temperature -5 °C ... 50 °C • Degree of protection IP40 • Corrosion resistance class CRC 1 - Low corrosion stress • Operating pressure -0.09 MPa ... 0.7 MPa • Operating pressure -0.9 bar ... 7 bar • Pilot pressure 0.3 MPa ... 0.7 MPa • Pilot pressure 3 bar ... 7 bar
