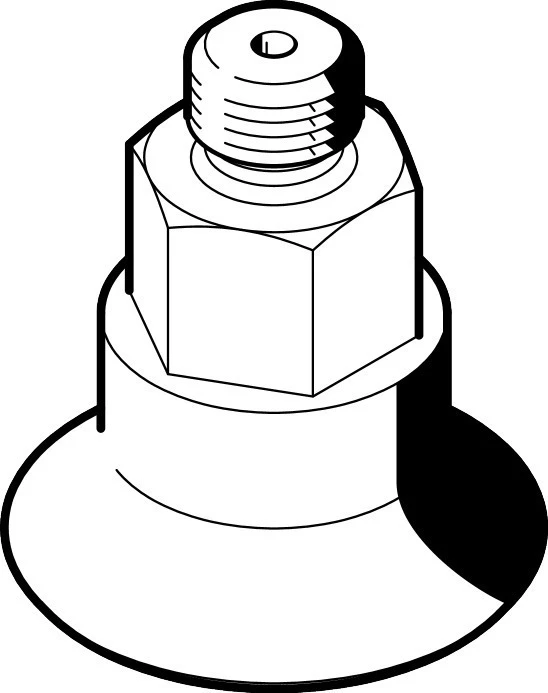

Suction cup complete, ESS-40-GT-G1/4
SKU: 525975
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Suction cups with connector ESS, round, deep
• Height compensator for suction-cup holder 5.5 mm
• Min. workpiece radius 35 mm
• Nominal size 2.5 mm
• Suction cup diameter 40 mm
• Suction cup volume 5.4 cm³
• Mounting position optional
• Symbol 00991485
• Suction cup shape Round deep
• Operating pressure -0.95 bar ... 0 bar
• Nominal operating pressure -0.7 bar
• Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
• Material suction cup Vulkollan
Buy currently uses Select Automation shop pricing and checkout.
Suction cup with connector ESS
• Suction cup consisting of the suction cup itself, plus the support plate with mounting
• Suction cup volume: 0.002 … 245 cm³
• Min. workpiece radius: 10 … 680 mm
• Mounting for suction cup holder: female thread, male thread, push-in connector
• Suction cup with mounting thread
