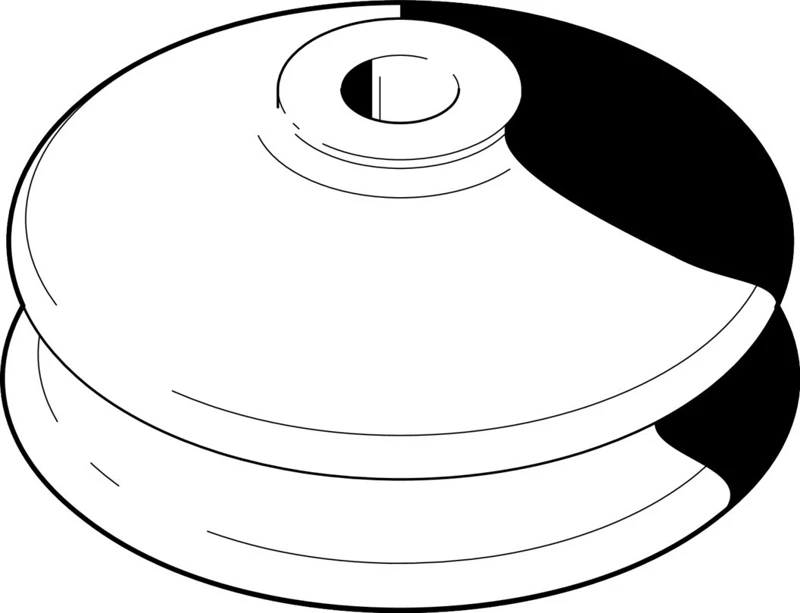

Suction cup without connector, ESV-80-BT

Specifications • Suction cups without connector ESV, round, protective bellows with 1.5 convolutions • Height compensator for suction-cup holder 10.5 mm • Min. workpiece radius 100 mm • Suction cup diameter 80 mm • Suction cup volume 59.1 cm³ • Mounting position optional • Design Bellows • Symbol 00991485 • Suction cup shape Round bellows 1.5 convolutions • Operating pressure -0.95 bar ... 0 bar • Nominal operating pressure -0.7 bar • Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-] • Material suction cup Vulkollan
