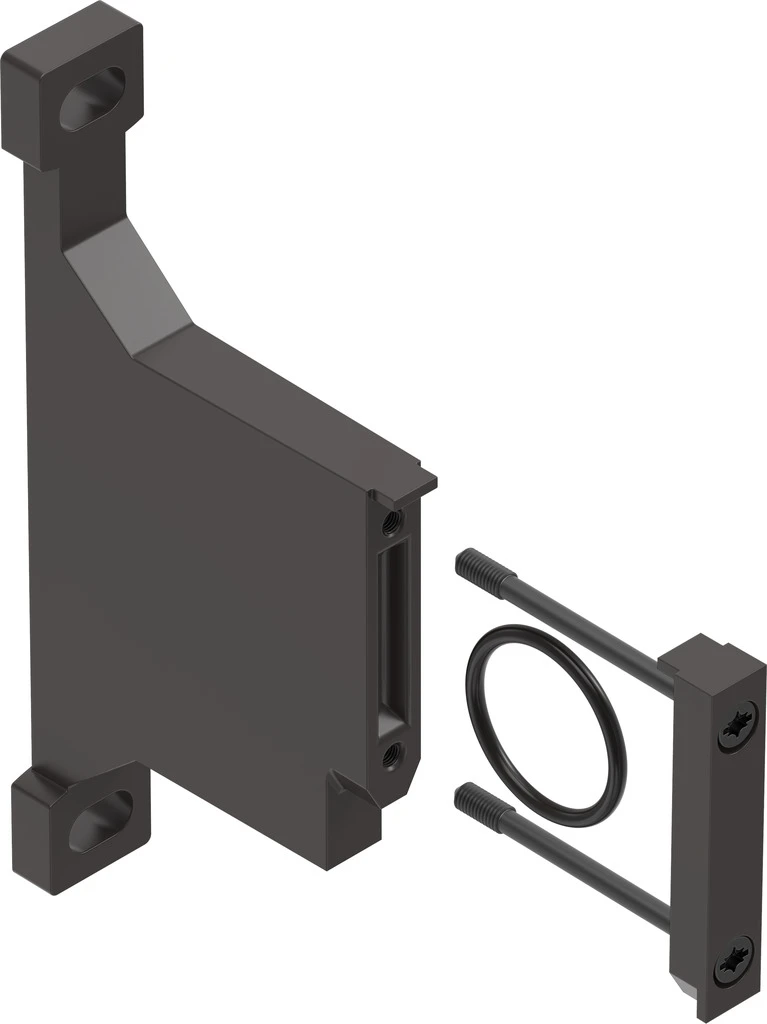

Service units MSB4/MSB6, MS series, Accessories, Mounting bracket, MS4-WPB
SKU: 526063
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Service units MSB4/MSB6, MS series
• Accessories, Mounting bracket
• Size 4
• Series MS
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Media temperature -10 °C ... 60 °C
• Product weight 55 g
• Note on materials RoHS-compliant
• Material seals NBR
• Material module connector POM, Steel
• Material screws Steel
• Material bracket Die-cast aluminium
Buy currently uses Select Automation shop pricing and checkout.
Service units MSB4/MSB6, MS series
• For filtered and unlubricated compressed air
• Supply pressure can be opened and closed
• Output pressure is infinitely adjustable within the pressure regulation range
• Flow rate 950 … 5500 l/min
• Operating pressure 0.8 … 18 bar
• Grade of filtration 40 μm
• Manual rotary condensate drain
• Combinations comprising:
1. Manually operated on/off valve, filter regulator with lockable pressure gauge,
mounting bracket
2. Manually operated on/off valve, filter regulator with lockable pressure gauge,
branching module with pressure switch, mounting bracket
3. Manually operated on/off valve, filter regulator with lockable pressure gauge,
solenoid actuated on/off valve with pressure sensor for operational status
indicator, mounting bracket
