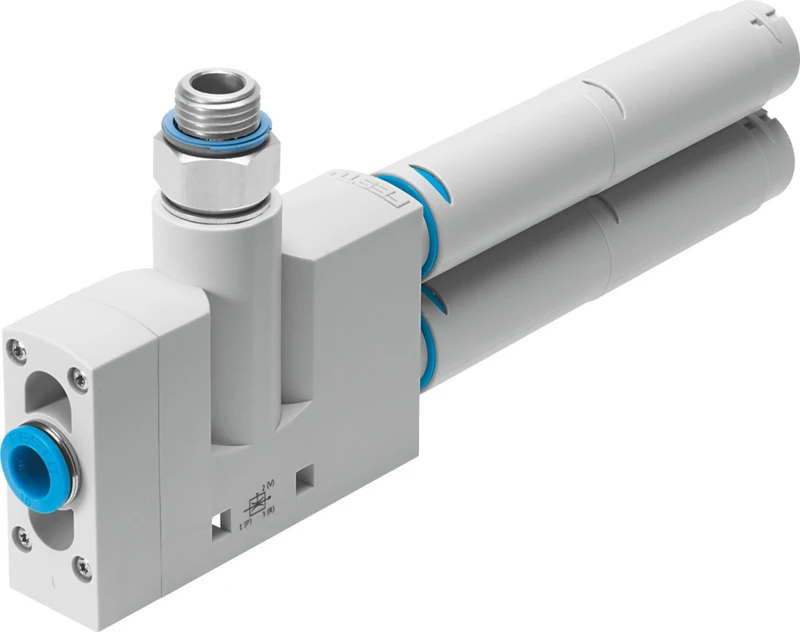

Vacuum generator, VN-20-H-T6-PQ4-VA5-RO2
SKU: 526145
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators VN
• Nominal size, Laval nozzle 2 mm
• Grid dimension 24 mm
• Silencer design Open
• Mounting position optional
• Ejector characteristic High vacuum, Standard
• Integrated function Open silencer
• Design T-shape
• Symbol 00991489
• Operating pressure for max. suction flow rate 2 bar
• Operating pressure 1 bar ... 8 bar
• Operating pressure for max. vacuum 3.5 bar
• Max. vacuum 92 %
• Nominal operating pressure 6 bar
• Max. suction flow rate against atmosphere 98 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator, pneumatic VN
• Can be used directly in the work space
• Available as straight type (in-line: vacuum port in line with the supply port) or T-shape (standard: vacuum port at 90° to the supply port)
• Compact and cost-effective
• Maintenance-free operation and reduced noise level through an integrated, open silencer
• Variants recommended for production systems for manufacturing lithium-ion batteries
