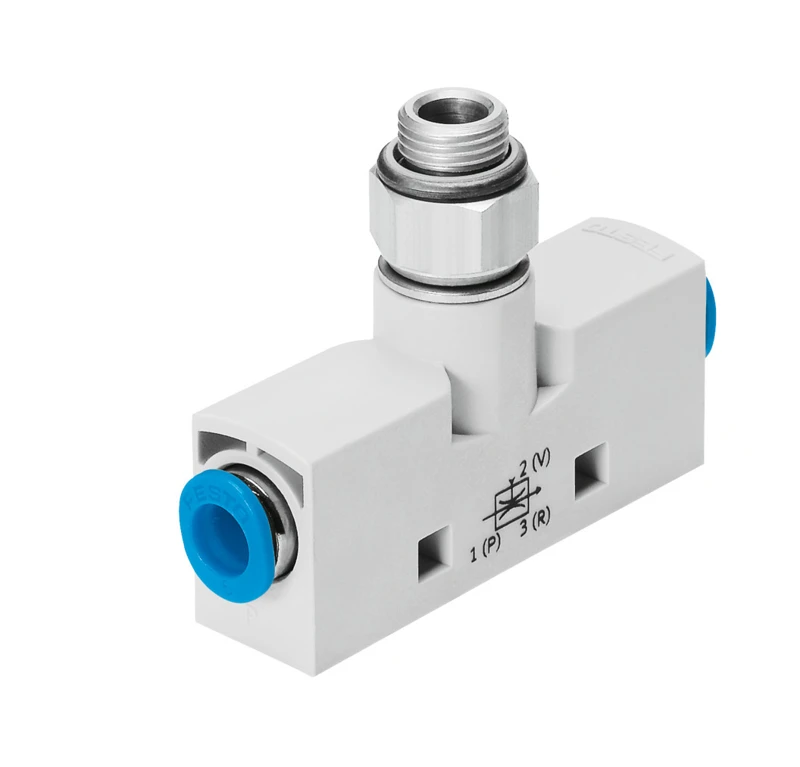

Vacuum generator, VN-10-H-T4-PQ2-VA5-RQ3
SKU: 526153
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators VN
• Nominal size, Laval nozzle 0.95 mm
• Grid dimension 18 mm
• Mounting position optional
• Ejector characteristic High vacuum, Standard
• Design T-shape
• Symbol 00991490
• Operating pressure for max. suction flow rate 3.1 bar
• Operating pressure 1 bar ... 8 bar
• Operating pressure for max. vacuum 4.5 bar
• Max. vacuum 89 %
• Nominal operating pressure 6 bar
• Max. suction flow rate against atmosphere 25 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator, pneumatic VN
• Can be used directly in the work space
• Available as straight type (in-line: vacuum port in line with the supply port) or T-shape (standard: vacuum port at 90° to the supply port)
• Compact and cost-effective
• Maintenance-free operation and reduced noise level through an integrated, open silencer
• Variants recommended for production systems for manufacturing lithium-ion batteries
