Filter regulator, MS4-LFR
SKU: 526489
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulators MS4/MS6-LFR, MS series
• Size 4
• Series MS
• Actuator lock Rotary knob with detent, Rotary knob with integrated lock can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm ... 40 µm
• Condensate drain Fully automatic, Manual, non-detenting, Manually rotating, Semi-automatic
• Design Filter regulator with pressure gauge, Filter regulator without pressure gauge
• Controller function Output pressure constant, With secondary venting, With return flow function
• Bowl guard Plastic bowl guard, Integrated as metal bowl
• Degree of condensate separation >75 %
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) Prepared for G1/4, Prepared for G1/8, Via pressure sensor, With pressure gauge
• Operating pressure 0.8 bar ... 14 bar
Buy currently uses Select Automation shop pricing and checkout.

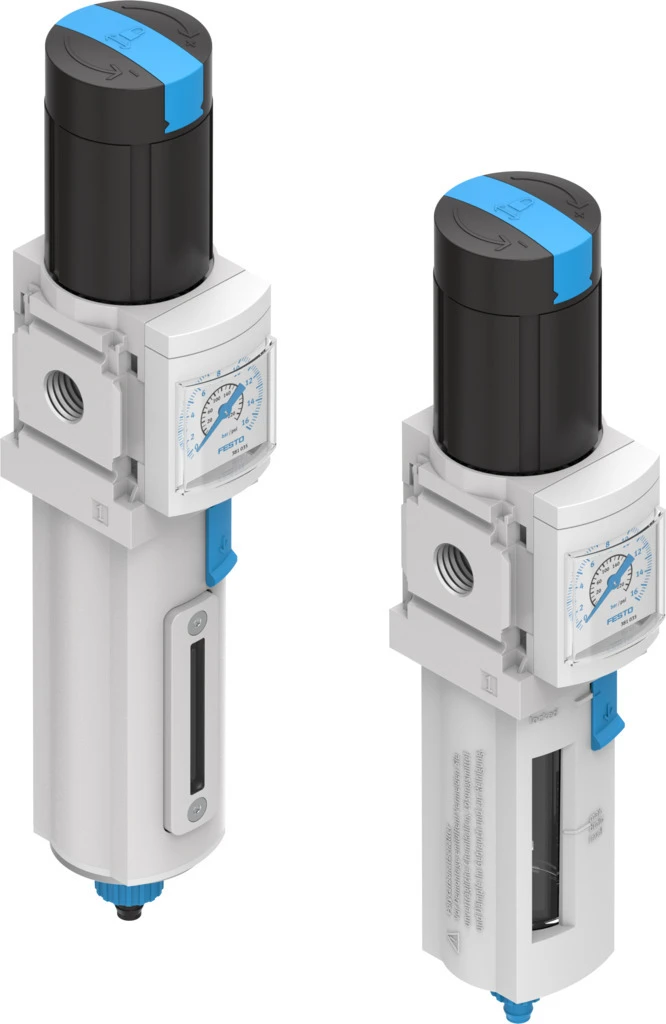

Filter regulator MS4-LFR
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task. In sizes 4, 6, 9 and 12.
• Grid dimension 40mm
• Directly actuated diaphragm control valve
• Good control characteristics with minimal pressure hysteresis and primary pressure compensation
• Good particle and condensate separation
• With or without secondary exhausting
• High flow rate
• Lockable rotary knob
• Return flow option for exhausting from output 2 to input 1 already integrated
