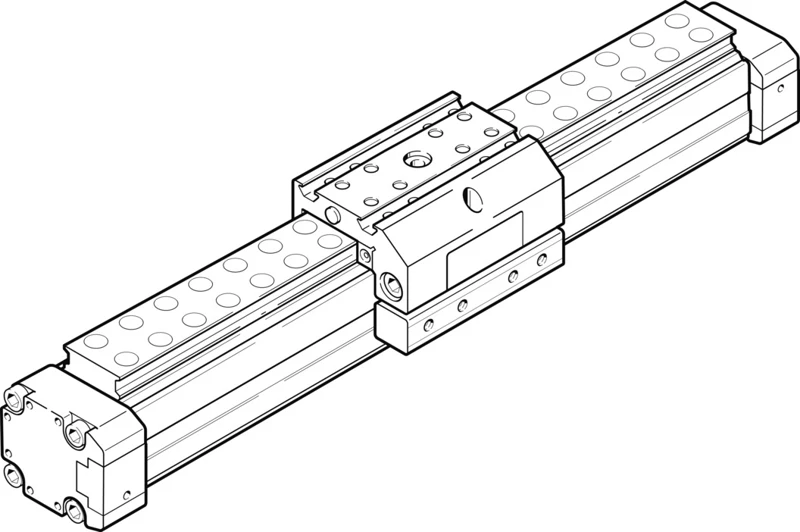

Linear drive, DGPL-32-1000-PPV-A-B-KF

Specifications • Linear drives DGPL, with guide, Standard strokes • Stroke 1000 mm • Piston diameter 32 mm • Cushioning Pneumatic cushioning, adjustable at both ends, Shock absorber, hard characteristic curve • Mounting position optional • Guide Recirculating ball bearing guide • Coupling design Positive-locking (slot) • Position detection Via proximity switch • Symbol 00991254 • Operating pressure 0.2 MPa ... 0.8 MPa • Operating pressure 2 bar ... 8 bar • Mode of operation Double-acting • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 483 N
