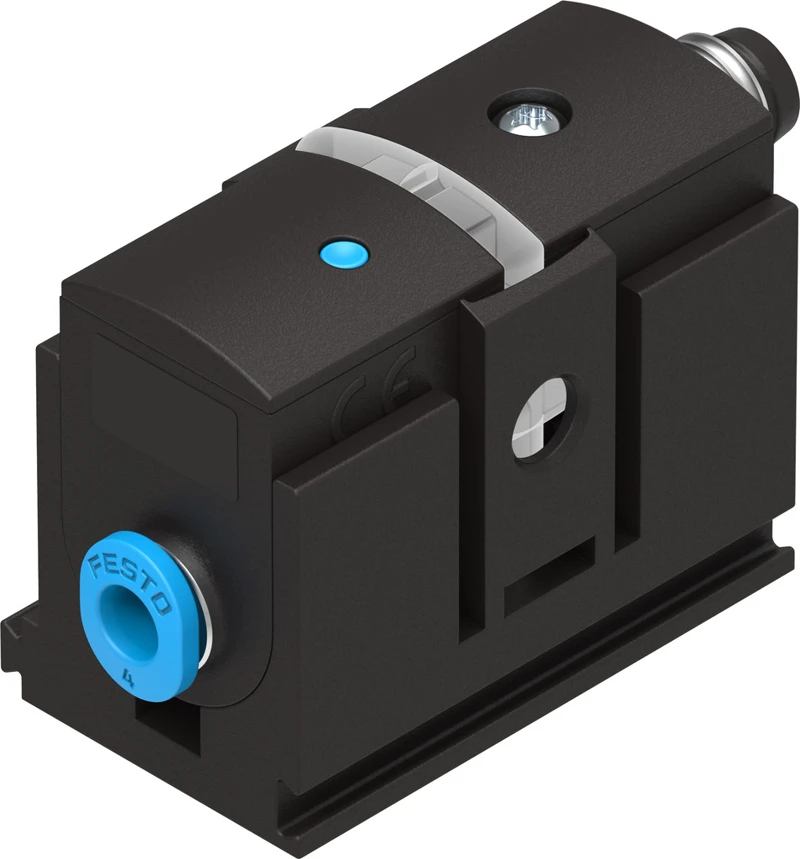

Pressure sensors, SDE5-V1-O-Q4E-P-M8

Specifications • Pressure sensors SDE5 • Symbol 00991164 • Approval RCM trademark, c UL us - Recognized (OL) • CE mark (see declaration of conformity) To EU EMC Directive, In accordance with EU RoHS Directive • CE marking (see declaration of conformity) To UK instructions for EMC, To UK RoHS instructions • Note on materials RoHS-compliant • Measured variable Relative pressure • Measurement method Piezoresistive pressure sensor • Start value for pressure measuring range 0 bar • End value for pressure measuring range -1 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation possible • Media temperature 0 °C ... 50 °C • Ambient temperature 0 °C ... 50 °C
