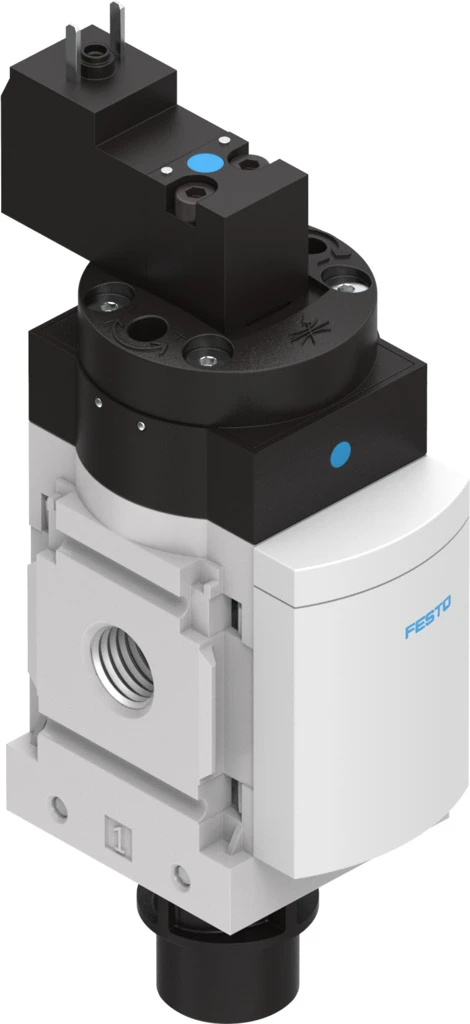

On/off valve, MS4-EE
SKU: 527709
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• On/off valves MS4/MS6-EE, MS series
• Design Piston gate valve
• Type of actuation Electric
• Exhaust-air function Without flow control option
• Manual override Detenting, None, Non-detenting
• Type of reset Mechanical spring
• Type of piloting Pilot actuated
• Valve function 3/2-way, closed, monostable
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) Prepared for G1/4, Prepared for G1/8, Via pressure sensor, With pressure gauge
• Operating pressure 4 bar ... 14 bar
• Lap Overlap
• Standard nominal flow rate (standardised to DIN 1343) 1000 l/min ... 2000 l/min
• Pneumatic connection, port 3 G1/4
Buy currently uses Select Automation shop pricing and checkout.
On/off valve MS4-EE
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 40mm
• Electric 3/2-way valve for pressurising and exhausting pneumatic installations
• A silencer can be attached or the exhaust air ducted at port 3
• Supply voltage 24 V DC, 110, 230 V AC
• Optionally with pressure gauge and pressure sensor
• With solenoid coil, without plug socket
