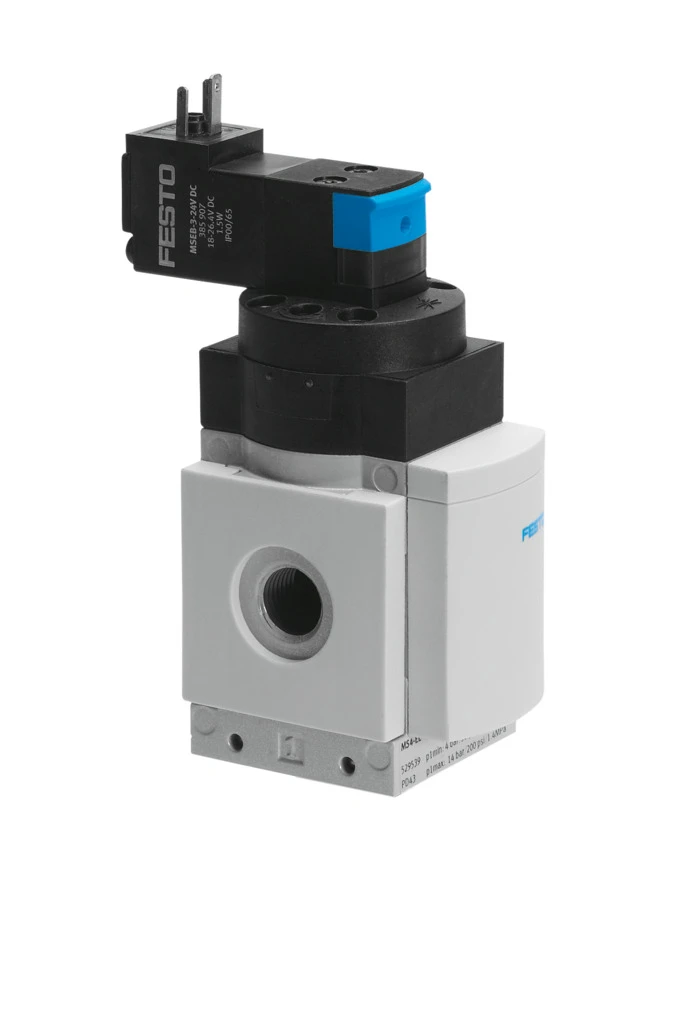

Soft start valve, MS4-DE
SKU: 527713
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Soft-start valves MS4/MS6-DE, MS series
• Type of actuation Electric
• Mounting position optional
• Manual override Detenting, Non-detenting
• Design Piston seat
• Type of reset Mechanical spring
• Type of piloting Pilot actuated
• Pilot air supply Internal
• Flow direction Non-reversible
• Valve function 2/2
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) Prepared for G1/4, Prepared for G1/8, Via pressure sensor, With pressure gauge
• Switching position indicator With accessories
• Operating pressure 4 bar ... 14 bar
• Standard nominal flow rate (standardised to DIN 1343) 1000 l/min ... 2000 l/min
Buy currently uses Select Automation shop pricing and checkout.
Soft-start valve MS4-DE
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 40mm
• 2/2-way valve for slowly pressurising pneumatic installations with electrically switchable pressure switchover point
• Supply voltage 24 V DC, 110, 230 V AC
• Switchable pressure switching point
• For advancing the drives slowly and reliably into the initial position
• For avoiding sudden and unexpected movements
• Adjustable pressure build-up time
