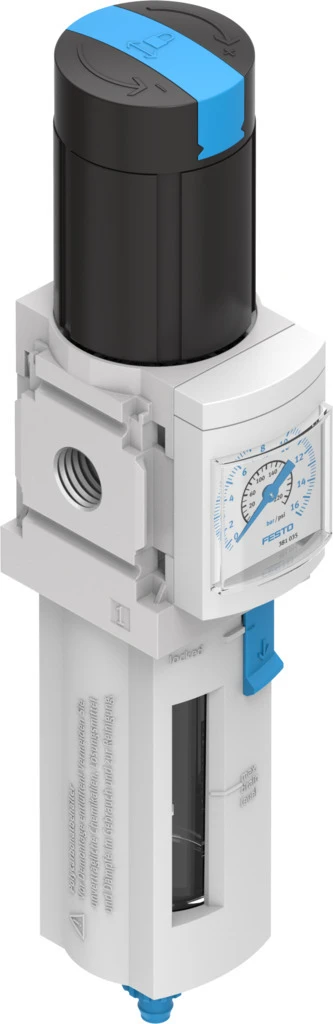

Filter regulator, MS4-LFR-1/8-D6-ERM-AS
SKU: 529164
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulators MS4/MS6-LFR, MS series
• Size 4
• Series MS
• Actuator lock Rotary knob with detent can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 40 µm
• Condensate drain Manually rotating
• Design Filter regulator with pressure gauge
• Max. condensate volume 19 ml
• Controller function Output pressure constant, With secondary venting, With return flow function
• Bowl guard Plastic bowl guard
• Degree of condensate separation >75 %
• Pneumatic connection, port 1 G1/8
• Standard nominal flow rate (standardised to DIN 1343) 1000 l/min
• Pressure regulation range 0.3 bar - 7 bar
Buy currently uses Select Automation shop pricing and checkout.
Filter regulator MS4-LFR
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task. In sizes 4, 6, 9 and 12.
• Grid dimension 40mm
• Directly actuated diaphragm control valve
• Good control characteristics with minimal pressure hysteresis and primary pressure compensation
• Good particle and condensate separation
• With or without secondary exhausting
• High flow rate
• Lockable rotary knob
• Return flow option for exhausting from output 2 to input 1 already integrated
