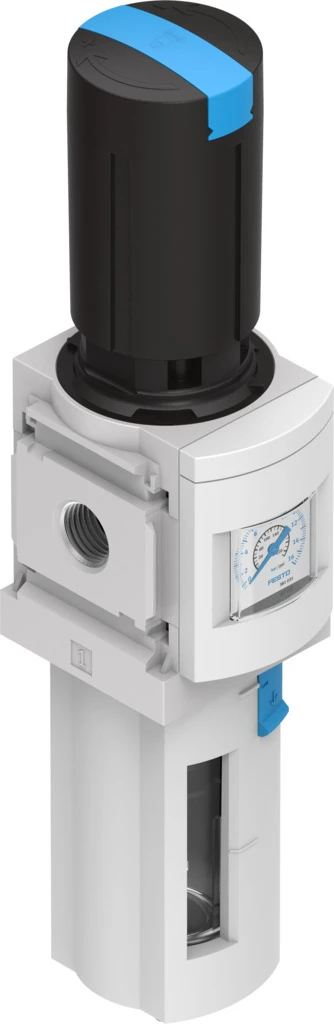

Filter regulator, MS6-LFR-1/4-D6-CRM-AS
SKU: 529196
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulators MS4/MS6-LFR, MS series
• Size 6
• Series MS
• Actuator lock Rotary knob with detent can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Manually rotating
• Design Filter regulator with pressure gauge
• Max. condensate volume 38 ml
• Controller function Output pressure constant, With secondary venting
• Bowl guard Plastic bowl guard
• Degree of condensate separation >75 %
• Pneumatic connection, port 1 G1/4
• Standard nominal flow rate (standardised to DIN 1343) 2700 l/min
• Pressure regulation range 0.3 bar - 7 bar
Buy currently uses Select Automation shop pricing and checkout.
Filter regulator MS6-LFR
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors. The right solution for very task. In sizes 4, 6, 9 and 12.
• Grid dimension 62 mm
• Directly actuated diaphragm control valve
• Good control characteristics with minimal pressure hysteresis and primary pressure compensation
• Good particle and condensate separation
• With or without secondary exhausting
• High flow rate
• Lockable rotary knob
• Return flow option for exhausting from output 2 to input 1 already integrated
