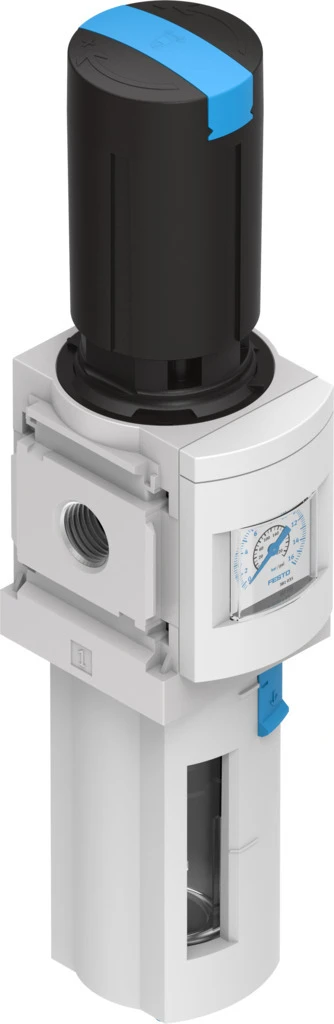

Filter regulator, MS6-LFR-1/4-D7-CRM-AS
SKU: 529204
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• End-position controllers SPC11
• Accessories, Filter regulator
• Size 6
• Series MS
• Actuator lock Rotary knob with detent can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Manually rotating
• Design Filter regulator with pressure gauge
• Max. condensate volume 38 ml
• Controller function Output pressure constant, With secondary venting
• Pneumatic connection, port 1 G1/4
• Standard nominal flow rate (standardised to DIN 1343) 2200 l/min
• Pressure regulation range 0.5 bar - 12 bar
Buy currently uses Select Automation shop pricing and checkout.
Filter regulator MS6-LFR
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task. In sizes 4, 6, 9 and 12.
• Grid dimension 62 mm
• Directly actuated diaphragm control valve
• Good control characteristics with minimal pressure hysteresis and primary pressure compensation
• Good particle and condensate separation
• With or without secondary exhausting
• High flow rate
• Lockable rotary knob
• Return flow option for exhausting from output 2 to input 1 already integrated
