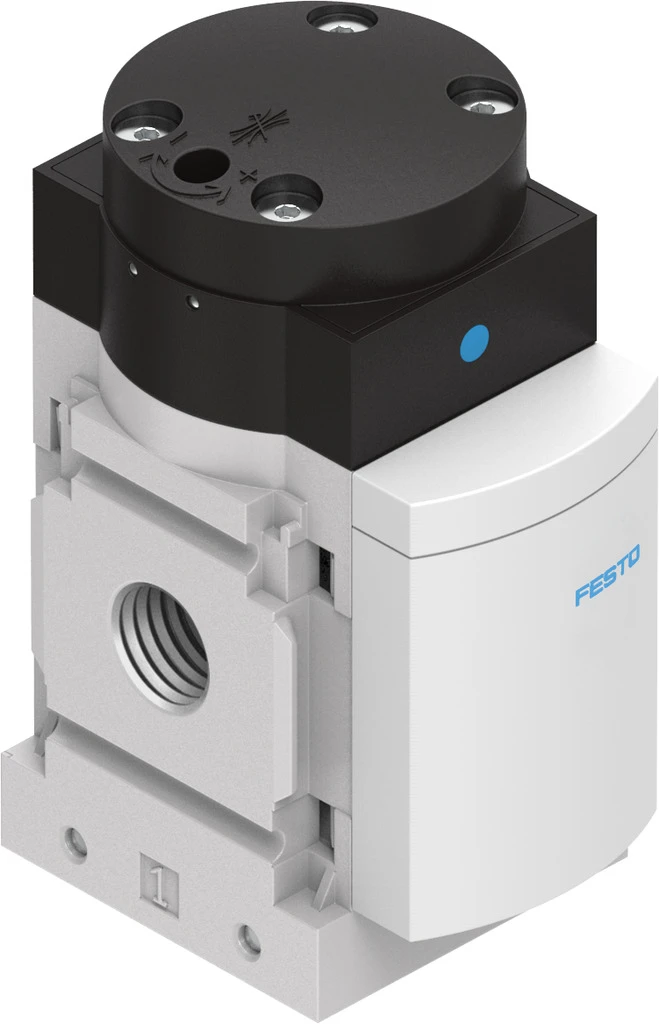

Soft start valve, MS4-DL-1/4
SKU: 529531
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Soft-start valves MS4/MS6-DL, MS series
• Exhaust-air function With flow control option
• Type of actuation Pneumatic
• Mounting position optional
• Manual override None
• Design Piston seat
• Type of reset Mechanical spring
• Type of piloting Direct
• Pilot air supply External
• Flow direction Non-reversible
• Symbol 00991513
• Valve function 2/2
• Operating pressure 4 bar ... 14 bar
• b value 0.45
• C value 9.6 l/sbar
• Standard nominal flow rate 2000 l/min
Buy currently uses Select Automation shop pricing and checkout.
Soft-start valves MS4/MS6-DL, MS series
• For slowly pressurising and exhausting pneumatic installations (for use with on/off valves EM1 and EE)
• Connection G1/4, G1/2
• Flow rate 1000 ... 6450 l/min
• Operating pressure 4 … 18 bar
• Selected types in accordance with ATEX directive for potentially explosive atmospheres
