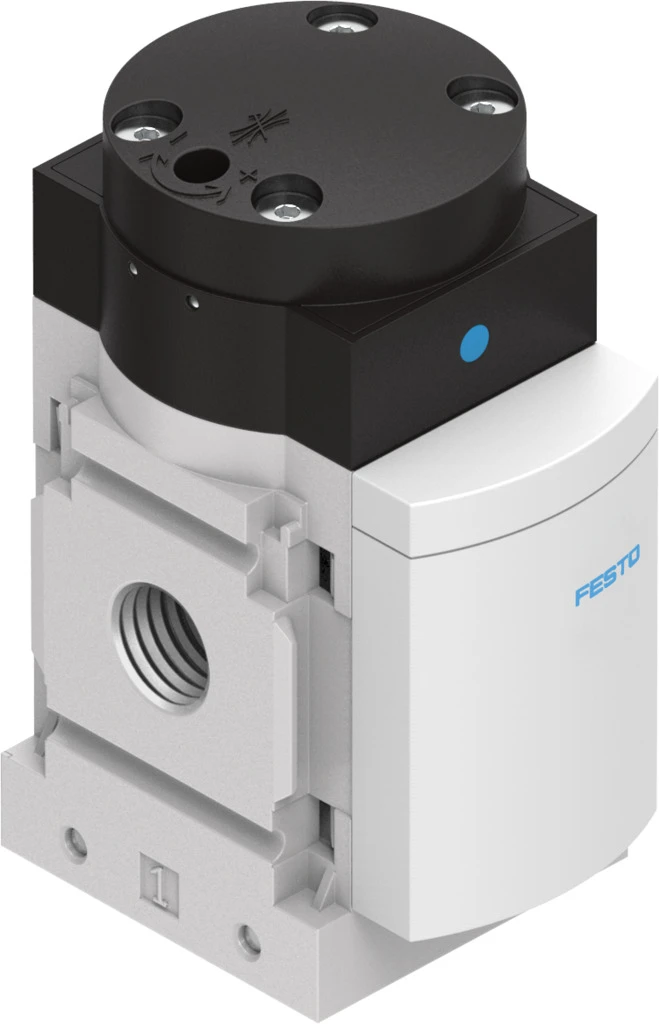

Soft start valve, MS4-DL-1/4-Z
SKU: 529532
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Soft-start valves MS4/MS6-DL, MS series
• Exhaust-air function With flow control option
• Type of actuation Pneumatic
• Mounting position optional
• Manual override None
• Design Piston seat
• Type of reset Mechanical spring
• Type of piloting Direct
• Pilot air supply External
• Flow direction Non-reversible
• Symbol 00991513
• Valve function 2/2
• Operating pressure 4 bar ... 14 bar
• b value 0.45
• C value 9.6 l/sbar
• Standard nominal flow rate (standardised to DIN 1343) 2000 l/min
• Pneumatic connection, port 1 G1/4
Buy currently uses Select Automation shop pricing and checkout.
Soft-start valve MS4-DL
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 40mm
• 2/2-way valve for slowly pressurising pneumatic systems (for use with on/off valves EM(1) and EE)
• For building up pressure gradually
• Adjustable pressure build-up time
