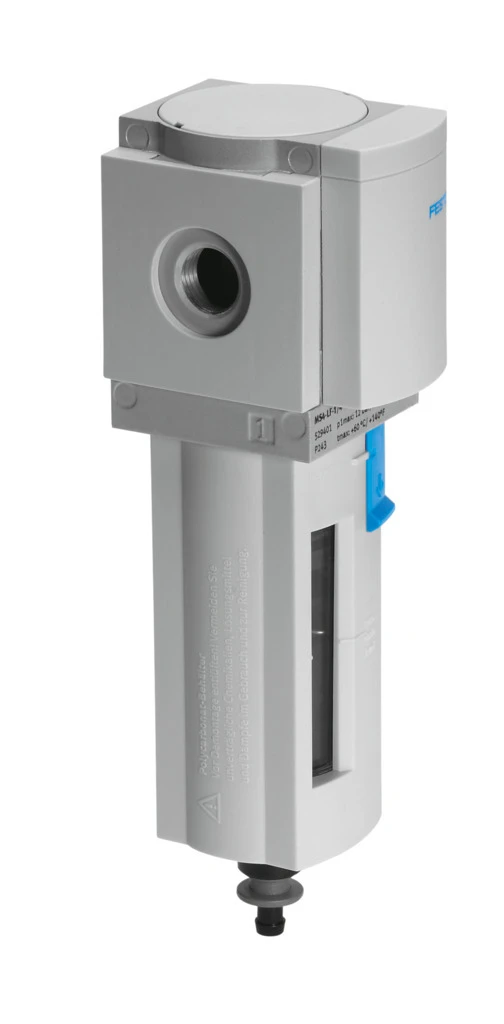

Filter, MS6-LF-1/2-CUM
SKU: 529611
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filters MS4/MS6-LF, MS series
• Size 6
• Series MS
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Manually rotating
• Design Sintered filter with centrifugal separator
• Bowl guard Integrated as metal bowl
• Degree of condensate separation >75 %
• Symbol 00991519
• Operating pressure 0 bar ... 20 bar
• Standard nominal flow rate (standardised to DIN 1343) 3200 l/min
• Pneumatic connection, port 1 G1/2
• Ambient temperature -10 °C - 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Filter MS6-LF
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 62 mm
• Good particle and condensate separation
• High flow rate performance with minimal pressure drop
• Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain
