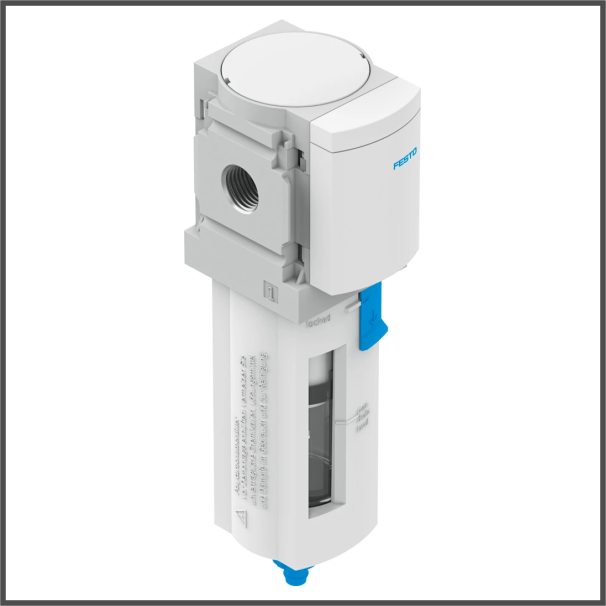

Activated carbon filter, MS6-LFX-1/2-U

Specifications • Activated carbon filters MS4/MS6-LFX, MS series • Size 6 • Series MS • Mounting position Vertical +/-5° • Design Activated carbon filter • Bowl guard Integrated as metal bowl • Symbol 00991519 • Operating pressure 0 bar ... 20 bar • Max. standard flow rate for clean air class 900 l/min • Operating medium Compressed air to ISO 8573-1:2010 [1:4:2] Inert gases • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Storage temperature -10 °C ... 60 °C • Suitable for use with food See supplementary material information • Air purity class at output Compressed air according to ISO 8573-1:2010 [1:4:1] • Pneumatic connection, port 1 G1/2 • Ambient temperature -10 °C - 60 °C
